suiss/ui · Component
Chart
Themed building blocks for Recharts charts, with a shared color config, tooltip and legend.
Chart is an open-source component from suiss/ui for React, React Native, SwiftUI and Jetpack Compose. The @esuiss/ui CLI copies its source into your project, so you own the code.
import { Bar, BarChart, CartesianGrid, XAxis } from "recharts"
import {
type ChartConfig,
ChartContainer,
ChartTooltip,
ChartTooltipContent,
} from "@/components/ui/chart"
const visitors = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 73, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 214, mobile: 140 },
]
const visitorsConfig = {
desktop: { label: "Desktop", color: "var(--chart-1)" },
mobile: { label: "Mobile", color: "var(--color-green-500)" },
} satisfies ChartConfig
const shortMonth = (value: string) => value.slice(0, 3)
export default function ChartDemo() {
return (
<div className="w-[min(32rem,calc(100vw-2rem))]">
<ChartContainer config={visitorsConfig} className="w-full">
{
<BarChart accessibilityLayer data={visitors}>
<CartesianGrid vertical={false} />
<XAxis
dataKey="month"
tickLine={false}
tickMargin={10}
axisLine={false}
tickFormatter={shortMonth}
/>
<ChartTooltip content={<ChartTooltipContent />} />
<Bar dataKey="desktop" fill="var(--color-desktop)" radius={8} />
</BarChart>
}
</ChartContainer>
</div>
)
}Chart does not draw charts itself; it styles charts you compose with recharts. A ChartContainer takes a config that maps each data key to a label, an optional icon and a color, and wraps your Recharts chart in a ResponsiveContainer. Inside the chart, use ChartTooltip with content={<ChartTooltipContent />} and ChartLegend with content={<ChartLegendContent />} to render a tooltip and legend that read labels and colors from the config.
Use it for bar, line, area and pie charts in dashboards and reports. Because you work with Recharts directly, every Recharts chart type and prop remains available.
Installation
CLI
$ pnpm dlx shadcn@latest add @esuiss/chartWorks in any project with a components.json. See Installation for the one-line registry setup. Or use the suiss/ui CLI:
$ pnpm dlx @esuiss/ui@latest add chartManual
- Install the dependencies and add the
cnhelper:
$ pnpm add recharts- Copy the source into
components/ui/chart.tsx:
"use client"
import * as React from "react"
import type { TooltipValueType } from "recharts"
import * as RechartsPrimitive from "recharts"
import { cn } from "@/lib/utils"
const THEMES = { light: "", dark: ".dark" } as const
const INITIAL_DIMENSION = { width: 320, height: 200 } as const
const UNSAFE_IDENTIFIER_CHARACTERS = /[^\w-]/g
const UNSAFE_VALUE_CHARACTERS = /[;{}<>\\]/
type TooltipNameType = number | string
export type ChartConfig = Record<
string,- Update the import paths to match your project.
Usage
import { ChartContainer, ChartTooltipContent, ChartLegendContent } from "@/components/ui/chart"<div className="w-[min(32rem,calc(100vw-2rem))]">
<ChartContainer config={visitorsConfig} className="w-full">{(
<BarChart accessibilityLayer data={visitors}>
<CartesianGrid vertical={false} />
<XAxis
dataKey="month"
tickLine={false}
tickMargin={10}
axisLine={false}
tickFormatter={shortMonth}
/>
<ChartTooltip content={<ChartTooltipContent />} />
<Bar dataKey="desktop" fill="var(--color-desktop)" radius={8} />
</BarChart>
)}</ChartContainer>
</div>Each key in config becomes a CSS custom property scoped to the chart, such as --color-desktop. Reference it from your series, as in fill="var(--color-desktop)". Set color for a single value, or theme with light and dark values to switch colors with the .dark class.
For data where each row is its own category, such as a pie chart, put the color in the row (for example fill: "var(--color-safari)") and pass nameKey to ChartLegendContent so labels are looked up by that field.
The container is aspect-video by default; override its size with className, for example aspect-square max-w-72. Enable accessibilityLayer on the Recharts chart to support keyboard navigation.
ChartTooltip, ChartLegend and ChartStyle are also exported; the first two are the Recharts Tooltip and Legend components.
Examples
Multiple series

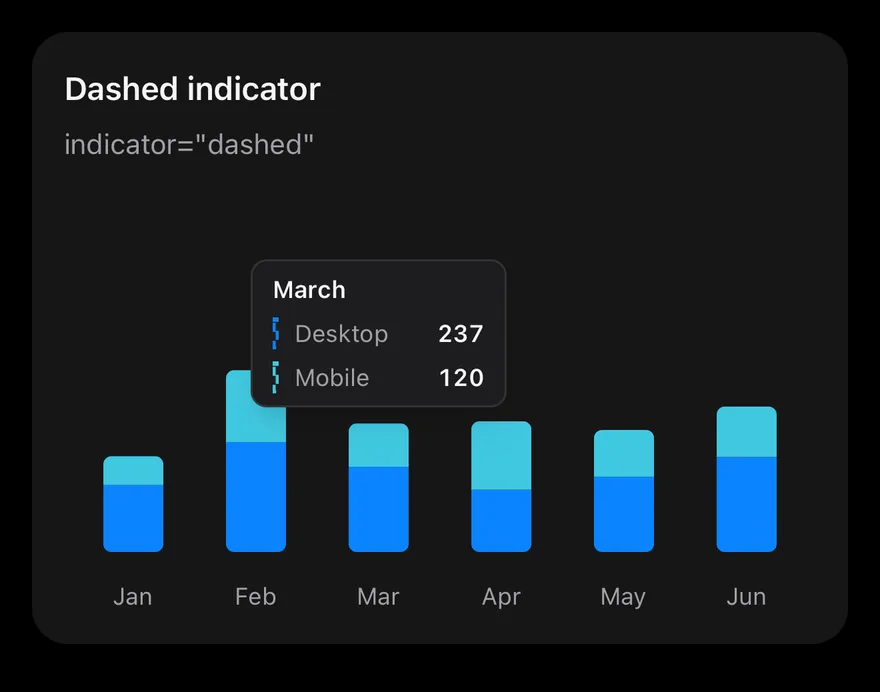

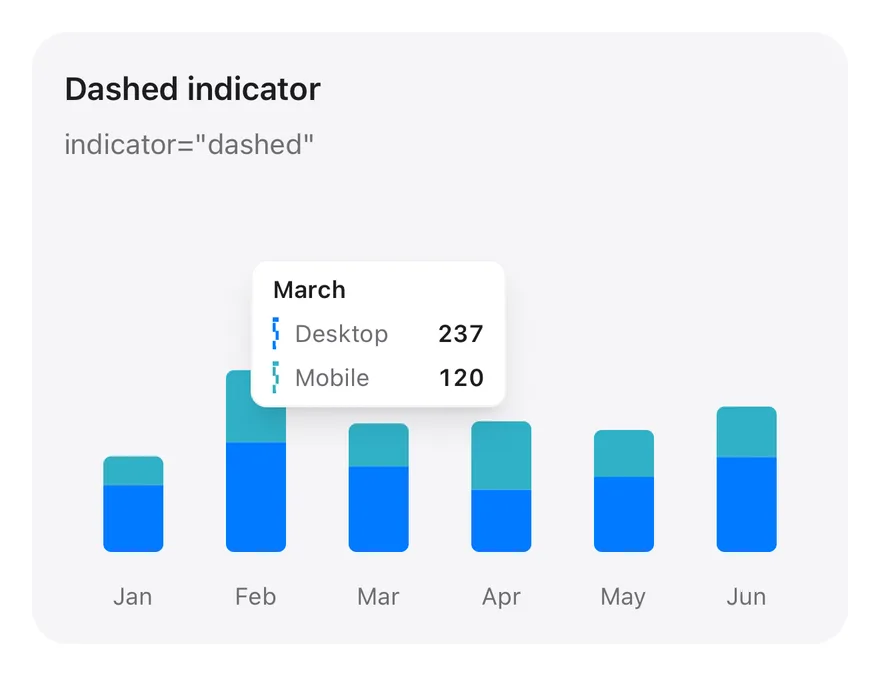

Two bar series with a legend and a dashed tooltip indicator.
import { Bar, BarChart, CartesianGrid, XAxis } from "recharts"
import {
type ChartConfig,
ChartContainer,
ChartLegend,
ChartLegendContent,
ChartTooltip,
ChartTooltipContent,
} from "@/components/ui/chart"
const visitors = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 73, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 214, mobile: 140 },
]
const visitorsConfig = {
desktop: { label: "Desktop", color: "var(--chart-1)" },
mobile: { label: "Mobile", color: "var(--color-green-500)" },
} satisfies ChartConfig
const shortMonth = (value: string) => value.slice(0, 3)
export default function ChartMultipleSeries() {
return (
<div className="w-[min(32rem,calc(100vw-2rem))]">
<ChartContainer config={visitorsConfig} className="w-full">
{
<BarChart accessibilityLayer data={visitors}>
<CartesianGrid vertical={false} />
<XAxis
dataKey="month"
tickLine={false}
tickMargin={10}
axisLine={false}
tickFormatter={shortMonth}
/>
<ChartTooltip
content={<ChartTooltipContent indicator="dashed" />}
/>
<ChartLegend content={<ChartLegendContent />} />
<Bar dataKey="desktop" fill="var(--color-desktop)" radius={6} />
<Bar dataKey="mobile" fill="var(--color-mobile)" radius={6} />
</BarChart>
}
</ChartContainer>
</div>
)
}Stacked

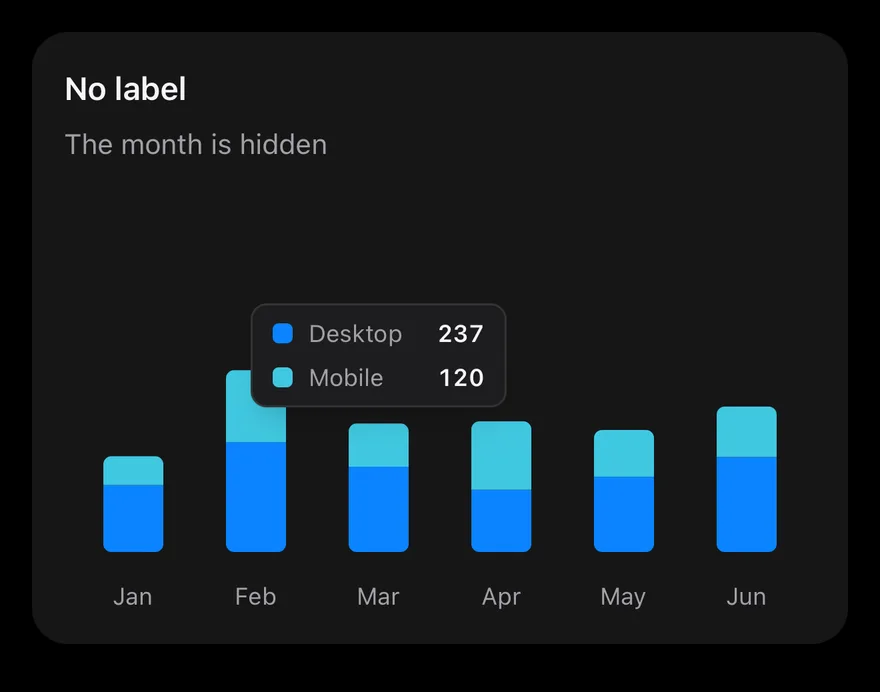

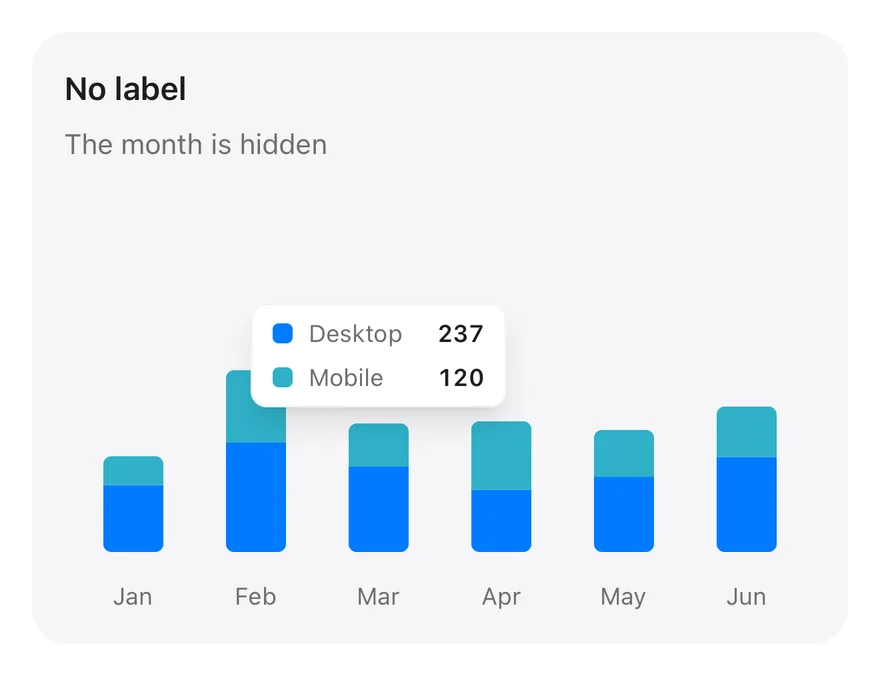

Stacks two bar series and hides the tooltip label.
import { Bar, BarChart, CartesianGrid, XAxis } from "recharts"
import {
type ChartConfig,
ChartContainer,
ChartLegend,
ChartLegendContent,
ChartTooltip,
ChartTooltipContent,
} from "@/components/ui/chart"
const visitors = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 73, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 214, mobile: 140 },
]
const visitorsConfig = {
desktop: { label: "Desktop", color: "var(--chart-1)" },
mobile: { label: "Mobile", color: "var(--color-green-500)" },
} satisfies ChartConfig
const shortMonth = (value: string) => value.slice(0, 3)
export default function ChartStacked() {
return (
<div className="w-[min(32rem,calc(100vw-2rem))]">
<ChartContainer config={visitorsConfig} className="w-full">
{
<BarChart accessibilityLayer data={visitors}>
<CartesianGrid vertical={false} />
<XAxis
dataKey="month"
tickLine={false}
tickMargin={10}
axisLine={false}
tickFormatter={shortMonth}
/>
<ChartTooltip content={<ChartTooltipContent hideLabel />} />
<ChartLegend content={<ChartLegendContent />} />
<Bar
dataKey="desktop"
stackId="a"
fill="var(--color-desktop)"
radius={[0, 0, 6, 6]}
/>
<Bar
dataKey="mobile"
stackId="a"
fill="var(--color-mobile)"
radius={[6, 6, 0, 0]}
/>
</BarChart>
}
</ChartContainer>
</div>
)
}Line series
Two smooth lines with a line tooltip indicator.
import { CartesianGrid, Line, LineChart, XAxis } from "recharts"
import {
type ChartConfig,
ChartContainer,
ChartTooltip,
ChartTooltipContent,
} from "@/components/ui/chart"
const visitors = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 73, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 214, mobile: 140 },
]
const visitorsConfig = {
desktop: { label: "Desktop", color: "var(--chart-1)" },
mobile: { label: "Mobile", color: "var(--color-green-500)" },
} satisfies ChartConfig
const shortMonth = (value: string) => value.slice(0, 3)
export default function ChartLineSeries() {
return (
<div className="w-[min(32rem,calc(100vw-2rem))]">
<ChartContainer config={visitorsConfig} className="w-full">
{
<LineChart
accessibilityLayer
data={visitors}
margin={{ left: 12, right: 12 }}
>
<CartesianGrid vertical={false} />
<XAxis
dataKey="month"
tickLine={false}
tickMargin={10}
axisLine={false}
tickFormatter={shortMonth}
/>
<ChartTooltip content={<ChartTooltipContent indicator="line" />} />
<Line
dataKey="desktop"
type="monotone"
stroke="var(--color-desktop)"
strokeWidth={2}
dot={false}
/>
<Line
dataKey="mobile"
type="monotone"
stroke="var(--color-mobile)"
strokeWidth={2}
dot={false}
/>
</LineChart>
}
</ChartContainer>
</div>
)
}Area series
Two stacked, semi-transparent areas.
import { Area, AreaChart, CartesianGrid, XAxis } from "recharts"
import {
type ChartConfig,
ChartContainer,
ChartTooltip,
ChartTooltipContent,
} from "@/components/ui/chart"
const visitors = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 73, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 214, mobile: 140 },
]
const visitorsConfig = {
desktop: { label: "Desktop", color: "var(--chart-1)" },
mobile: { label: "Mobile", color: "var(--color-green-500)" },
} satisfies ChartConfig
const shortMonth = (value: string) => value.slice(0, 3)
export default function ChartAreaSeries() {
return (
<div className="w-[min(32rem,calc(100vw-2rem))]">
<ChartContainer config={visitorsConfig} className="w-full">
{
<AreaChart
accessibilityLayer
data={visitors}
margin={{ left: 12, right: 12 }}
>
<CartesianGrid vertical={false} />
<XAxis
dataKey="month"
tickLine={false}
tickMargin={10}
axisLine={false}
tickFormatter={shortMonth}
/>
<ChartTooltip content={<ChartTooltipContent indicator="dot" />} />
<Area
dataKey="mobile"
type="natural"
stackId="a"
fill="var(--color-mobile)"
fillOpacity={0.4}
stroke="var(--color-mobile)"
/>
<Area
dataKey="desktop"
type="natural"
stackId="a"
fill="var(--color-desktop)"
fillOpacity={0.4}
stroke="var(--color-desktop)"
/>
</AreaChart>
}
</ChartContainer>
</div>
)
}Donut
A pie chart with an inner radius, colored per row and labelled through nameKey.
import { Pie, PieChart } from "recharts"
import {
type ChartConfig,
ChartContainer,
ChartLegend,
ChartLegendContent,
ChartTooltip,
ChartTooltipContent,
} from "@/components/ui/chart"
const browsers = [
{ browser: "safari", visitors: 275, fill: "var(--color-safari)" },
{ browser: "chrome", visitors: 200, fill: "var(--color-chrome)" },
{ browser: "firefox", visitors: 187, fill: "var(--color-firefox)" },
{ browser: "edge", visitors: 173, fill: "var(--color-edge)" },
{ browser: "other", visitors: 90, fill: "var(--color-other)" },
]
const browsersConfig = {
visitors: { label: "Visitors" },
safari: { label: "Safari", color: "var(--chart-1)" },
chrome: { label: "Chrome", color: "var(--color-green-500)" },
firefox: { label: "Firefox", color: "var(--chart-4)" },
edge: { label: "Edge", color: "var(--color-purple-500)" },
other: { label: "Other", color: "var(--color-red-500)" },
} satisfies ChartConfig
export default function ChartDonut() {
return (
<div className="w-[min(32rem,calc(100vw-2rem))]">
<ChartContainer
config={browsersConfig}
className="mx-auto aspect-square w-full max-w-72"
>
{
<PieChart>
<ChartTooltip content={<ChartTooltipContent hideLabel />} />
<Pie
data={browsers}
dataKey="visitors"
nameKey="browser"
innerRadius={60}
strokeWidth={4}
/>
<ChartLegend content={<ChartLegendContent nameKey="browser" />} />
</PieChart>
}
</ChartContainer>
</div>
)
}API Reference
ChartContainer
Provides the config, injects the color variables and makes the chart responsive.
| Prop | Type | Default | Description |
|---|---|---|---|
config | ChartConfig | Required | Maps data keys to a label, optional icon, and a color or per-theme theme colors. |
children | React.ComponentProps< typeof RechartsPrimitive.ResponsiveContainer >["children"] | Required | The Recharts chart element to render responsively. |
initialDimension | { width: number height: number } | INITIAL_DIMENSION | Width and height used before the container is measured. Defaults to 320 by 200. |
Also accepts the props of React.ComponentProps<"div">.
ChartTooltipContent
A styled tooltip body that lists each series with its indicator, label and value.
| Prop | Type | Default | Description |
|---|---|---|---|

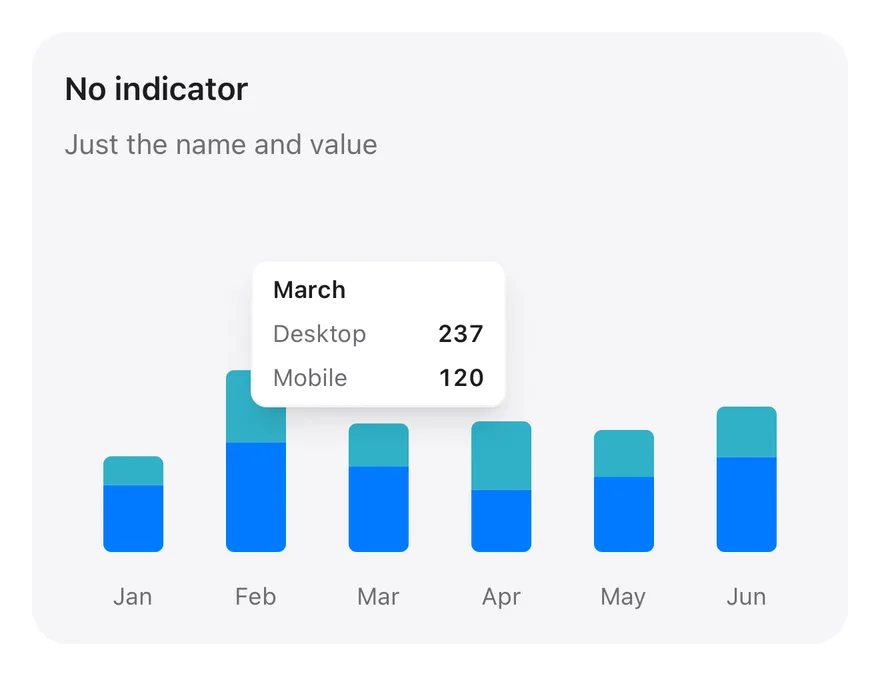

hideLabel | boolean | false | Hides the tooltip's heading label. |
hideIndicator | boolean | false | Hides the color indicator next to each series. |
indicator | "line" | "dot" | "dashed" | "dot" | Shape of the series indicator: dot, line or dashed. |
nameKey | string | - | Field used to look up each item's config entry instead of its name or data key. |
labelKey | string | - | Field used to look up the heading label in the config. |
Also accepts the props of React.ComponentProps<typeof RechartsPrimitive.Tooltip>, React.ComponentProps<"div">, RechartsPrimitive.DefaultTooltipContentProps< TooltipValueType, TooltipNameType >.
ChartLegendContent
A styled legend that lists series in config order with a swatch or icon.
| Prop | Type | Default | Description |
|---|---|---|---|
hideIcon | boolean | false | Shows a color swatch even when the config entry has an icon. |
nameKey | string | - | Field used to look up each legend item's config entry instead of its data key. |
Also accepts the props of React.ComponentProps<"div">, RechartsPrimitive.DefaultLegendContentProps.
Accessibility
- With
accessibilityLayeron the Recharts chart, the chart is focusable and arrow keys move between data points, showing the tooltip for each. - Charts are visual; provide a nearby summary or table when the exact values matter.
- Do not rely on color alone to tell series apart; the legend and tooltip pair each color with its label.
Notes
- Styling hooks:
data-slot="chart"and a uniquedata-chartid on the container, which scopes the generated--color-*variables. - Config keys and color values containing unsafe characters are skipped when generating CSS.
- The container restyles Recharts defaults, such as grid lines, axis ticks and the tooltip cursor, with the
border,muted-foregroundandmutedcolors. - Tooltip values that are numbers are formatted with
toLocaleString().
iOS
import * as React from "react"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
const monthData = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 173, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 264, mobile: 140 },
]
const deviceConfig = {
desktop: { label: "Desktop", color: "chart-1" },
mobile: { label: "Mobile", color: "chart-2" },
} satisfies ChartConfig
function StackedTooltipChart({
title,
description,
defaultIndex,
content,
}: {
title: string
description: string
defaultIndex: number
content: React.ReactElement
}) {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>{title}</CardTitle>
<CardDescription>{description}</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={deviceConfig}
accessibilityLabel={title}
className="h-52 w-full"
>
<BarChart
data={monthData}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="month"
tickMargin={8}
interval={0}
tickFormatter={(value: string) => value.slice(0, 3)}
/>
<ChartTooltip
defaultIndex={defaultIndex}
cursor={false}
content={content}
/>
<Bar
dataKey="desktop"
stackId="a"
radius={[0, 0, 4, 4]}
maxBarSize={30}
/>
<Bar
dataKey="mobile"
stackId="a"
radius={[4, 4, 0, 0]}
maxBarSize={30}
/>
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipDotExample() {
return (
<StackedTooltipChart
title="Dot indicator"
description='indicator="dot"'
defaultIndex={2}
content={<ChartTooltipContent indicator="dot" />}
/>
)
}import Charts
import EsuissUI
import SwiftUI
struct ChartTooltipDotExample: View {
var body: some View {
ChartStackedTooltip(title: "Dot indicator", description: "indicator=\"dot\"", defaultIndex: 2) { payload in
ChartTooltipContent(payload, indicator: .dot)
}
}
}
let chartMonthData: [(month: String, desktop: Double, mobile: Double)] = [
("January", 186, 80),
("February", 305, 200),
("March", 237, 120),
("April", 173, 190),
("May", 209, 130),
("June", 264, 140),
]
let chartDevices: ChartConfig = [
"desktop": .init("Desktop", color: Palette.blue500),
"mobile": .init("Mobile", color: Palette.teal500),
]
struct ChartStackedTooltip<Tooltip: View>: View {
let title: String
let description: String
var config = chartDevices
let defaultIndex: Int
@ViewBuilder let tooltip: (ChartTooltipPayload) -> Tooltip
var body: some View {
Card(.filled, size: .sm) {
CardHeader(LocalizedStringKey(title), description: LocalizedStringKey(description))
CardContent {
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(chartMonthData.indices, id: \.self) { index in
let item = chartMonthData[index]
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", 0),
yEnd: .value("Desktop", item.desktop * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(bottomLeadingRadius: 4, bottomTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("desktop"))
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", item.desktop * progress),
yEnd: .value("Mobile", (item.desktop + item.mobile) * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(topLeadingRadius: 4, topTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("mobile"))
ChartAnchorMark(x: .value("Month", item.month), y: .value("Mobile", item.desktop + item.mobile))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: chartMonthData.map(\.month)) { String($0.prefix(3)) } }
.chartYAxis(.hidden)
.chartTooltip(
x: chartMonthData.map(\.month),
defaultIndex: defaultIndex,
cursor: false,
accessibilityLabel: title,
items: { index in
[
ChartTooltipItem("desktop", value: chartMonthData[index].desktop),
ChartTooltipItem("mobile", value: chartMonthData[index].mobile),
]
},
content: tooltip
)
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import com.adamglin.phosphoricons.regular.Desktop
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipIndicator
import com.esuiss.ui.components.ChartTooltipScope
@Composable
fun ChartTooltipDotExample() {
ChartStackedTooltip("Dot indicator", "indicator=\"dot\"", 2) { ChartTooltipContent(indicator = ChartTooltipIndicator.Dot) }
}
class ChartMonth(val month: String, val desktop: Double, val mobile: Double)
val chartMonthData = listOf(
ChartMonth("January", 186.0, 80.0),
ChartMonth("February", 305.0, 200.0),
ChartMonth("March", 237.0, 120.0),
ChartMonth("April", 173.0, 190.0),
ChartMonth("May", 209.0, 130.0),
ChartMonth("June", 264.0, 140.0),
)
val chartDeviceConfig = ChartConfig(
"desktop" to ChartConfigItem("Desktop") { chart1 },
"mobile" to ChartConfigItem("Mobile") { chart2 },
)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartStackedTooltip(
title: String,
description: String,
defaultIndex: Int,
config: ChartConfig = chartDeviceConfig,
tooltip: @Composable ChartTooltipScope.() -> Unit,
) {
ChartTooltipCard(title, description) {
ChartContainer(config, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
chartMonthData,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = title,
) {
XAxis(label = { it.month }, tickMargin = 8.dp, interval = 0, tickFormatter = { it.take(3) })
ChartTooltip(defaultIndex = defaultIndex, cursor = null, content = tooltip)
Bar("desktop", value = { it.desktop }, stackId = "a", radius = ChartRadius(0.dp, 0.dp, 4.dp, 4.dp), maxBarSize = 30.dp)
Bar("mobile", value = { it.mobile }, stackId = "a", radius = ChartRadius(4.dp, 4.dp, 0.dp, 0.dp), maxBarSize = 30.dp)
}
}
}
}Charts are composed declaratively: a chart root such as LineChart, AreaChart, BarChart, ComposedChart, PieChart, RadialBarChart or RadarChart goes inside a ChartContainer, and series and axes such as Line, Area, Bar, XAxis, YAxis and CartesianGrid are added as children. These child components render nothing themselves; the root reads them and draws everything with react-native-svg.
Charts animate in when they first render: bars grow from the baseline, lines draw along their path, areas reveal from left to right, pie and radial sectors sweep open and radar shapes grow from the center. When the data changes, shapes animate from their previous values to the new ones.
Colors are theme tokens, not hex values. A series color such as chart-1, chart-2 or primary resolves to the current token color, so charts follow light and dark mode automatically.
Installation
$ pnpm dlx shadcn@latest add @esuiss-rn/chartSee Installation for the components.json setup. Or use the suiss/ui CLI:
$ pnpm dlx @esuiss/ui@latest add chart$ pnpm dlx @esuiss/ui@latest add chart --platform swift$ pnpm dlx @esuiss/ui@latest add chart --platform kotlinThe CLI also adds what it builds on: Icon, Text.
Manual
- Install the dependencies:
npx expo install cn phosphor-react-native react-native-svg-
Add the pieces it builds on: Icon, Text, and the primitives
components/primitives/chart.tsx. -
Copy the source into
components/ui/chart.tsx:
import { cn } from "cn"
import type {
Icon as PhosphorIcon,
IconProps as PhosphorIconProps,
} from "phosphor-react-native"
import * as React from "react"
import { View } from "react-native"
import Svg, {
Circle,
ClipPath,
Defs,
LinearGradient,
Path,
Rect,
Stop,
} from "react-native-svg"- Update the import paths to match your project.
- Install the dependencies:
npx expo install cn phosphor-react-native react-native-svg-
Add the pieces it builds on: Icon, Text, and the primitives
components/primitives/chart.tsx. -
Copy the source into
components/ui/chart.tsx:
import { cn } from "cn"
import type {
Icon as PhosphorIcon,
IconProps as PhosphorIconProps,
} from "phosphor-react-native"
import * as React from "react"
import { View } from "react-native"
import Svg, {
Circle,
ClipPath,
Defs,
LinearGradient,
Path,
Rect,
Stop,
} from "react-native-svg"- Update the import paths to match your project.
- Install the dependencies:
npx expo install phosphor-react-native react-native-svg-
Add the pieces it builds on: Icon, Text, and the primitives
components/primitives/chart.tsx. -
Copy the source into
components/ui/chart.tsx:
import type { Icon as PhosphorIcon } from "phosphor-react-native"
import * as React from "react"
import {
type StyleProp,
StyleSheet,
type TextStyle,
View,
type ViewStyle,
} from "react-native"
import Svg, {
Circle,
ClipPath,
Defs,
LinearGradient,
Path,
Rect,- Update the import paths to match your project.
-
Target iOS 17 or later.
-
Copy the theme files every view uses:
import SwiftUI
import UIKit
struct RGBA: Sendable {
let red: CGFloat
let green: CGFloat
let blue: CGFloat
let alpha: CGFloat
init(_ hex: UInt32, _ alpha: CGFloat = 1) {
red = CGFloat((hex >> 16) & 0xFF) / 255
green = CGFloat((hex >> 8) & 0xFF) / 255
blue = CGFloat(hex & 0xFF) / 255
self.alpha = alpha
}import SwiftUI
public enum EsuissColor {
public static let background = Color.adaptive(light: .init(0xFFFFFF), dark: .init(0x000000))
public static let foreground = Color.adaptive(light: .init(0x1D1D1F), dark: .init(0xF5F5F7))
public static let card = Color.adaptive(light: .init(0xFFFFFF), dark: .init(0x1D1D1F))
public static let cardForeground = Color.adaptive(light: .init(0x1D1D1F), dark: .init(0xF5F5F7))
public static let popover = Color.adaptive(light: .init(0xFFFFFF), dark: .init(0x1D1D1F))
public static let popoverForeground = Color.adaptive(light: .init(0x1D1D1F), dark: .init(0xF5F5F7))
public static let primary = Color.adaptive(light: .init(0x0071E3), dark: .init(0x2997FF))
public static let primaryForeground = Color.adaptive(light: .init(0xFFFFFF), dark: .init(0xFFFFFF))
public static let secondary = Color.adaptive(light: .init(0x000000, 0.04), dark: .init(0xFFFFFF, 0.1))
public static let secondaryForeground = Color.adaptive(light: .init(0x1D1D1F), dark: .init(0xF5F5F7))
public static let muted = Color.adaptive(light: .init(0xF5F5F7), dark: .init(0x161617))
public static let mutedForeground = Color.adaptive(light: .init(0x6E6E73), dark: .init(0xA1A1A6))
public static let accent = Color.adaptive(light: .init(0x000000, 0.06), dark: .init(0xFFFFFF, 0.1))- Copy the source and every file it uses:
import Charts
import SwiftUI
public struct ChartConfig: ExpressibleByDictionaryLiteral, Sendable {
public struct Item: Sendable {
public var label: String?
public var color: Color?
public var icon: Image?
public init(_ label: String? = nil, color: Color? = nil, icon: Image? = nil) {
self.label = label
self.color = color
self.icon = icon
}
}import SwiftUI
extension EnvironmentValues {
@Entry public var hapticsEnabled = true
}
extension View {
public func haptics(_ enabled: Bool) -> some View {
environment(\.hapticsEnabled, enabled)
}
func hapticFeedback<Trigger: Equatable>(_ feedback: SensoryFeedback, trigger: Trigger) -> some View {
modifier(HapticFeedbackModifier(feedback: feedback, trigger: trigger) { _, _ in true })
}
func hapticFeedback<Trigger: Equatable>(import SwiftUI
public enum ItemVariant: CaseIterable, Sendable {
case `default`, outline, muted
}
public enum ItemSize: CaseIterable, Sendable {
case `default`, sm, xs
var horizontalPadding: CGFloat {
switch self {
case .default: 16
case .sm: 14
case .xs: 12
}
}import SwiftUI
public struct Separator: View {
let orientation: Axis
public init(_ orientation: Axis = .horizontal) {
self.orientation = orientation
}
public var body: some View {
Rectangle()
.fill(EsuissColor.border)
.frame(width: orientation == .vertical ? 1 : nil, height: orientation == .horizontal ? 1 : nil)
.frame(maxWidth: orientation == .horizontal ? .infinity : nil, maxHeight: orientation == .vertical ? .infinity : nil)
.accessibilityHidden(true)
}import SwiftUI
public enum TextVariant: CaseIterable, Sendable {
case `default`, h1, h2, h3, h4, p, blockquote, code, lead, large, small, muted
var style: TextStyle {
switch self {
case .h1: .xl3
case .h2: .xl2
case .h3: .xl
case .h4, .lead, .large: .lg
case .code, .small, .muted: .sm
default: .base
}
}- Add the files to your app target.
- Set
minSdkto 24 or higher and add the dependencies:
implementation(platform("androidx.compose:compose-bom:2026.09.00"))
implementation("androidx.compose.foundation:foundation")
implementation("androidx.compose.ui:ui")- Copy the theme files every view uses:
package com.esuiss.ui.theme
import androidx.compose.foundation.isSystemInDarkTheme
import androidx.compose.runtime.Composable
import androidx.compose.runtime.CompositionLocalProvider
import androidx.compose.runtime.Immutable
import androidx.compose.runtime.staticCompositionLocalOf
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.dropShadow
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.Shape
import androidx.compose.ui.graphics.shadow.Shadow as DropShadow
import androidx.compose.ui.text.TextStyle
import androidx.compose.ui.text.style.LineHeightStyle
import androidx.compose.ui.unit.Dp
import androidx.compose.ui.unit.DpOffsetpackage com.esuiss.ui.theme
import androidx.compose.runtime.Immutable
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.unit.dp
@Immutable
data class Colors(
val background: Color,
val foreground: Color,
val card: Color,
val cardForeground: Color,
val popover: Color,
val popoverForeground: Color,
val primary: Color,
val primaryForeground: Color,- Copy the source and every file it uses:
package com.esuiss.ui.components
import androidx.compose.animation.core.Animatable
import androidx.compose.animation.core.CubicBezierEasing
import androidx.compose.animation.core.Easing
import androidx.compose.animation.core.LinearEasing
import androidx.compose.animation.core.tween
import androidx.compose.foundation.Canvas
import androidx.compose.foundation.background
import androidx.compose.foundation.border
import androidx.compose.foundation.gestures.detectHorizontalDragGestures
import androidx.compose.foundation.gestures.detectTapGestures
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.BoxScope
import androidx.compose.foundation.layout.BoxWithConstraintspackage com.esuiss.ui.components
import androidx.compose.runtime.compositionLocalOf
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.text.TextStyle
import androidx.compose.ui.unit.Dp
import androidx.compose.ui.unit.dp
val LocalContentStyle = compositionLocalOf { TextStyle.Default }
val LocalContentColor = compositionLocalOf { Color.Unspecified }
val LocalIconSize = compositionLocalOf { 20.dp }package com.esuiss.ui.components
import android.provider.Settings
import androidx.compose.animation.core.CubicBezierEasing
import androidx.compose.foundation.background
import androidx.compose.foundation.border
import androidx.compose.foundation.gestures.Orientation
import androidx.compose.foundation.text.selection.TextSelectionColors
import androidx.compose.runtime.Composable
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.alpha
import androidx.compose.ui.draw.clip
import androidx.compose.ui.draw.drawWithContent
import androidx.compose.ui.geometry.Offsetpackage com.esuiss.ui.components
import androidx.compose.runtime.Composable
import androidx.compose.runtime.CompositionLocalProvider
import androidx.compose.runtime.remember
import androidx.compose.runtime.staticCompositionLocalOf
import androidx.compose.ui.hapticfeedback.HapticFeedback
import androidx.compose.ui.hapticfeedback.HapticFeedbackType
import androidx.compose.ui.platform.LocalHapticFeedback
val LocalHapticsEnabled = staticCompositionLocalOf { true }
@Composable
fun ProvideHaptics(enabled: Boolean, content: @Composable () -> Unit) {
CompositionLocalProvider(LocalHapticsEnabled provides enabled, content = content)
}package com.esuiss.ui.components
import androidx.compose.foundation.Image
import androidx.compose.foundation.layout.size
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.graphics.ColorFilter
import androidx.compose.ui.graphics.takeOrElse
import androidx.compose.ui.graphics.vector.ImageVector
import androidx.compose.ui.unit.Dp
import com.esuiss.ui.theme.EsuissTheme
@Composable
fun Icon(
imageVector: ImageVector,- Update the
com.esuiss.uipackage names to match your project.
Usage
import { ChartPalette, ChartContainer, LineChart, AreaChart, BarChart, ComposedChart, PieChart, RadialBarChart, RadarChart, ChartTooltipContent, ChartLegendContent } from "@/components/ui/chart"<StackedTooltipChart
title="Dot indicator"
description='indicator="dot"'
defaultIndex={2}
content={<ChartTooltipContent indicator="dot" />}
/>Describe each series in a ChartConfig object with a label, a token color and an optional icon, and pass it to ChartContainer as config. The container is full width with a 16:9 aspect ratio unless you give it an h-, size- or aspect- class.
Add ChartTooltip with content={<ChartTooltipContent />} to make the chart respond to touch: touching or dragging selects the nearest data point, draws a cursor and shows the tooltip, with a selection haptic. ChartTooltipContent supports indicator (dot, line or dashed), hideLabel, hideIndicator, labelFormatter, formatter and nameKey. Use defaultIndex on ChartTooltip to start with a point selected, or onActiveIndexChange on the chart to react to selection.
Line, Area, Bar, Pie, RadialBar and Radar take isAnimationActive, animationDuration and animationEasing. Bars default to 400 ms and curves, sectors and radar shapes to 1500 ms, with ease easing. Set isAnimationActive={false} to draw a series in its final state, for example when its data changes on every interaction.
Add ChartLegend with content={<ChartLegendContent />} for a legend in config order. useChart() returns the config inside a container, and ChartPalette resolves token colors for custom drawing.
Examples
Tooltip line
Tooltip with a line indicator.
iOS
import * as React from "react"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
const monthData = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 173, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 264, mobile: 140 },
]
const deviceConfig = {
desktop: { label: "Desktop", color: "chart-1" },
mobile: { label: "Mobile", color: "chart-2" },
} satisfies ChartConfig
function StackedTooltipChart({
title,
description,
defaultIndex,
content,
}: {
title: string
description: string
defaultIndex: number
content: React.ReactElement
}) {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>{title}</CardTitle>
<CardDescription>{description}</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={deviceConfig}
accessibilityLabel={title}
className="h-52 w-full"
>
<BarChart
data={monthData}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="month"
tickMargin={8}
interval={0}
tickFormatter={(value: string) => value.slice(0, 3)}
/>
<ChartTooltip
defaultIndex={defaultIndex}
cursor={false}
content={content}
/>
<Bar
dataKey="desktop"
stackId="a"
radius={[0, 0, 4, 4]}
maxBarSize={30}
/>
<Bar
dataKey="mobile"
stackId="a"
radius={[4, 4, 0, 0]}
maxBarSize={30}
/>
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipLineExample() {
return (
<StackedTooltipChart
title="Line indicator"
description='indicator="line"'
defaultIndex={2}
content={<ChartTooltipContent indicator="line" />}
/>
)
}import Charts
import EsuissUI
import SwiftUI
struct ChartTooltipLineExample: View {
var body: some View {
ChartStackedTooltip(title: "Line indicator", description: "indicator=\"line\"", defaultIndex: 2) { payload in
ChartTooltipContent(payload, indicator: .line)
}
}
}
let chartMonthData: [(month: String, desktop: Double, mobile: Double)] = [
("January", 186, 80),
("February", 305, 200),
("March", 237, 120),
("April", 173, 190),
("May", 209, 130),
("June", 264, 140),
]
let chartDevices: ChartConfig = [
"desktop": .init("Desktop", color: Palette.blue500),
"mobile": .init("Mobile", color: Palette.teal500),
]
struct ChartStackedTooltip<Tooltip: View>: View {
let title: String
let description: String
var config = chartDevices
let defaultIndex: Int
@ViewBuilder let tooltip: (ChartTooltipPayload) -> Tooltip
var body: some View {
Card(.filled, size: .sm) {
CardHeader(LocalizedStringKey(title), description: LocalizedStringKey(description))
CardContent {
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(chartMonthData.indices, id: \.self) { index in
let item = chartMonthData[index]
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", 0),
yEnd: .value("Desktop", item.desktop * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(bottomLeadingRadius: 4, bottomTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("desktop"))
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", item.desktop * progress),
yEnd: .value("Mobile", (item.desktop + item.mobile) * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(topLeadingRadius: 4, topTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("mobile"))
ChartAnchorMark(x: .value("Month", item.month), y: .value("Mobile", item.desktop + item.mobile))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: chartMonthData.map(\.month)) { String($0.prefix(3)) } }
.chartYAxis(.hidden)
.chartTooltip(
x: chartMonthData.map(\.month),
defaultIndex: defaultIndex,
cursor: false,
accessibilityLabel: title,
items: { index in
[
ChartTooltipItem("desktop", value: chartMonthData[index].desktop),
ChartTooltipItem("mobile", value: chartMonthData[index].mobile),
]
},
content: tooltip
)
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import com.adamglin.phosphoricons.regular.Desktop
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipIndicator
import com.esuiss.ui.components.ChartTooltipScope
@Composable
fun ChartTooltipLineExample() {
ChartStackedTooltip("Line indicator", "indicator=\"line\"", 2) { ChartTooltipContent(indicator = ChartTooltipIndicator.Line) }
}
class ChartMonth(val month: String, val desktop: Double, val mobile: Double)
val chartMonthData = listOf(
ChartMonth("January", 186.0, 80.0),
ChartMonth("February", 305.0, 200.0),
ChartMonth("March", 237.0, 120.0),
ChartMonth("April", 173.0, 190.0),
ChartMonth("May", 209.0, 130.0),
ChartMonth("June", 264.0, 140.0),
)
val chartDeviceConfig = ChartConfig(
"desktop" to ChartConfigItem("Desktop") { chart1 },
"mobile" to ChartConfigItem("Mobile") { chart2 },
)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartStackedTooltip(
title: String,
description: String,
defaultIndex: Int,
config: ChartConfig = chartDeviceConfig,
tooltip: @Composable ChartTooltipScope.() -> Unit,
) {
ChartTooltipCard(title, description) {
ChartContainer(config, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
chartMonthData,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = title,
) {
XAxis(label = { it.month }, tickMargin = 8.dp, interval = 0, tickFormatter = { it.take(3) })
ChartTooltip(defaultIndex = defaultIndex, cursor = null, content = tooltip)
Bar("desktop", value = { it.desktop }, stackId = "a", radius = ChartRadius(0.dp, 0.dp, 4.dp, 4.dp), maxBarSize = 30.dp)
Bar("mobile", value = { it.mobile }, stackId = "a", radius = ChartRadius(4.dp, 4.dp, 0.dp, 0.dp), maxBarSize = 30.dp)
}
}
}
}Tooltip dashed
Tooltip with a dashed indicator.
iOS
import * as React from "react"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
const monthData = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 173, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 264, mobile: 140 },
]
const deviceConfig = {
desktop: { label: "Desktop", color: "chart-1" },
mobile: { label: "Mobile", color: "chart-2" },
} satisfies ChartConfig
function StackedTooltipChart({
title,
description,
defaultIndex,
content,
}: {
title: string
description: string
defaultIndex: number
content: React.ReactElement
}) {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>{title}</CardTitle>
<CardDescription>{description}</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={deviceConfig}
accessibilityLabel={title}
className="h-52 w-full"
>
<BarChart
data={monthData}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="month"
tickMargin={8}
interval={0}
tickFormatter={(value: string) => value.slice(0, 3)}
/>
<ChartTooltip
defaultIndex={defaultIndex}
cursor={false}
content={content}
/>
<Bar
dataKey="desktop"
stackId="a"
radius={[0, 0, 4, 4]}
maxBarSize={30}
/>
<Bar
dataKey="mobile"
stackId="a"
radius={[4, 4, 0, 0]}
maxBarSize={30}
/>
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipDashedExample() {
return (
<StackedTooltipChart
title="Dashed indicator"
description='indicator="dashed"'
defaultIndex={2}
content={<ChartTooltipContent indicator="dashed" />}
/>
)
}import Charts
import EsuissUI
import SwiftUI
struct ChartTooltipDashedExample: View {
var body: some View {
ChartStackedTooltip(title: "Dashed indicator", description: "indicator=\"dashed\"", defaultIndex: 2) { payload in
ChartTooltipContent(payload, indicator: .dashed)
}
}
}
let chartMonthData: [(month: String, desktop: Double, mobile: Double)] = [
("January", 186, 80),
("February", 305, 200),
("March", 237, 120),
("April", 173, 190),
("May", 209, 130),
("June", 264, 140),
]
let chartDevices: ChartConfig = [
"desktop": .init("Desktop", color: Palette.blue500),
"mobile": .init("Mobile", color: Palette.teal500),
]
struct ChartStackedTooltip<Tooltip: View>: View {
let title: String
let description: String
var config = chartDevices
let defaultIndex: Int
@ViewBuilder let tooltip: (ChartTooltipPayload) -> Tooltip
var body: some View {
Card(.filled, size: .sm) {
CardHeader(LocalizedStringKey(title), description: LocalizedStringKey(description))
CardContent {
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(chartMonthData.indices, id: \.self) { index in
let item = chartMonthData[index]
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", 0),
yEnd: .value("Desktop", item.desktop * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(bottomLeadingRadius: 4, bottomTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("desktop"))
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", item.desktop * progress),
yEnd: .value("Mobile", (item.desktop + item.mobile) * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(topLeadingRadius: 4, topTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("mobile"))
ChartAnchorMark(x: .value("Month", item.month), y: .value("Mobile", item.desktop + item.mobile))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: chartMonthData.map(\.month)) { String($0.prefix(3)) } }
.chartYAxis(.hidden)
.chartTooltip(
x: chartMonthData.map(\.month),
defaultIndex: defaultIndex,
cursor: false,
accessibilityLabel: title,
items: { index in
[
ChartTooltipItem("desktop", value: chartMonthData[index].desktop),
ChartTooltipItem("mobile", value: chartMonthData[index].mobile),
]
},
content: tooltip
)
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import com.adamglin.phosphoricons.regular.Desktop
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipIndicator
import com.esuiss.ui.components.ChartTooltipScope
@Composable
fun ChartTooltipDashedExample() {
ChartStackedTooltip("Dashed indicator", "indicator=\"dashed\"", 2) { ChartTooltipContent(indicator = ChartTooltipIndicator.Dashed) }
}
class ChartMonth(val month: String, val desktop: Double, val mobile: Double)
val chartMonthData = listOf(
ChartMonth("January", 186.0, 80.0),
ChartMonth("February", 305.0, 200.0),
ChartMonth("March", 237.0, 120.0),
ChartMonth("April", 173.0, 190.0),
ChartMonth("May", 209.0, 130.0),
ChartMonth("June", 264.0, 140.0),
)
val chartDeviceConfig = ChartConfig(
"desktop" to ChartConfigItem("Desktop") { chart1 },
"mobile" to ChartConfigItem("Mobile") { chart2 },
)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartStackedTooltip(
title: String,
description: String,
defaultIndex: Int,
config: ChartConfig = chartDeviceConfig,
tooltip: @Composable ChartTooltipScope.() -> Unit,
) {
ChartTooltipCard(title, description) {
ChartContainer(config, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
chartMonthData,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = title,
) {
XAxis(label = { it.month }, tickMargin = 8.dp, interval = 0, tickFormatter = { it.take(3) })
ChartTooltip(defaultIndex = defaultIndex, cursor = null, content = tooltip)
Bar("desktop", value = { it.desktop }, stackId = "a", radius = ChartRadius(0.dp, 0.dp, 4.dp, 4.dp), maxBarSize = 30.dp)
Bar("mobile", value = { it.mobile }, stackId = "a", radius = ChartRadius(4.dp, 4.dp, 0.dp, 0.dp), maxBarSize = 30.dp)
}
}
}

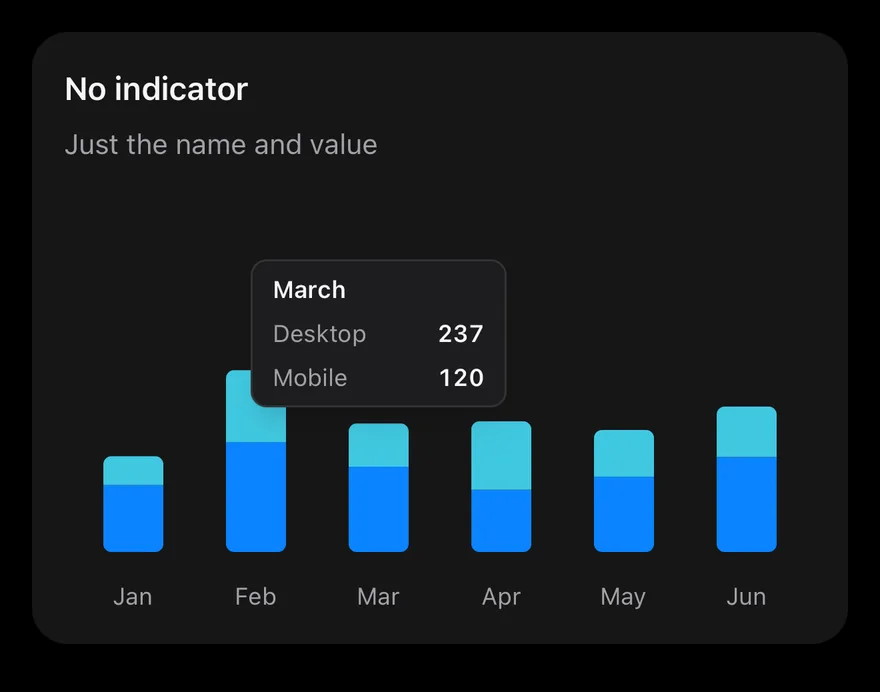

}Tooltip no indicator
Tooltip with only names and values.
iOS
import * as React from "react"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
const monthData = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 173, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 264, mobile: 140 },
]
const deviceConfig = {
desktop: { label: "Desktop", color: "chart-1" },
mobile: { label: "Mobile", color: "chart-2" },
} satisfies ChartConfig
function StackedTooltipChart({
title,
description,
defaultIndex,
content,
}: {
title: string
description: string
defaultIndex: number
content: React.ReactElement
}) {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>{title}</CardTitle>
<CardDescription>{description}</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={deviceConfig}
accessibilityLabel={title}
className="h-52 w-full"
>
<BarChart
data={monthData}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="month"
tickMargin={8}
interval={0}
tickFormatter={(value: string) => value.slice(0, 3)}
/>
<ChartTooltip
defaultIndex={defaultIndex}
cursor={false}
content={content}
/>
<Bar
dataKey="desktop"
stackId="a"
radius={[0, 0, 4, 4]}
maxBarSize={30}
/>
<Bar
dataKey="mobile"
stackId="a"
radius={[4, 4, 0, 0]}
maxBarSize={30}
/>
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipNoIndicatorExample() {
return (
<StackedTooltipChart
title="No indicator"
description="Just the name and value"
defaultIndex={2}
content={<ChartTooltipContent hideIndicator />}
/>
)
}import Charts
import EsuissUI
import SwiftUI
struct ChartTooltipNoIndicatorExample: View {
var body: some View {
ChartStackedTooltip(title: "No indicator", description: "Just the name and value", defaultIndex: 2) { payload in
ChartTooltipContent(payload, hideIndicator: true)
}
}
}
let chartMonthData: [(month: String, desktop: Double, mobile: Double)] = [
("January", 186, 80),
("February", 305, 200),
("March", 237, 120),
("April", 173, 190),
("May", 209, 130),
("June", 264, 140),
]
let chartDevices: ChartConfig = [
"desktop": .init("Desktop", color: Palette.blue500),
"mobile": .init("Mobile", color: Palette.teal500),
]
struct ChartStackedTooltip<Tooltip: View>: View {
let title: String
let description: String
var config = chartDevices
let defaultIndex: Int
@ViewBuilder let tooltip: (ChartTooltipPayload) -> Tooltip
var body: some View {
Card(.filled, size: .sm) {
CardHeader(LocalizedStringKey(title), description: LocalizedStringKey(description))
CardContent {
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(chartMonthData.indices, id: \.self) { index in
let item = chartMonthData[index]
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", 0),
yEnd: .value("Desktop", item.desktop * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(bottomLeadingRadius: 4, bottomTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("desktop"))
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", item.desktop * progress),
yEnd: .value("Mobile", (item.desktop + item.mobile) * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(topLeadingRadius: 4, topTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("mobile"))
ChartAnchorMark(x: .value("Month", item.month), y: .value("Mobile", item.desktop + item.mobile))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: chartMonthData.map(\.month)) { String($0.prefix(3)) } }
.chartYAxis(.hidden)
.chartTooltip(
x: chartMonthData.map(\.month),
defaultIndex: defaultIndex,
cursor: false,
accessibilityLabel: title,
items: { index in
[
ChartTooltipItem("desktop", value: chartMonthData[index].desktop),
ChartTooltipItem("mobile", value: chartMonthData[index].mobile),
]
},
content: tooltip
)
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import com.adamglin.phosphoricons.regular.Desktop
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipScope
@Composable
fun ChartTooltipNoIndicatorExample() {
ChartStackedTooltip("No indicator", "Just the name and value", 2) { ChartTooltipContent(hideIndicator = true) }
}
class ChartMonth(val month: String, val desktop: Double, val mobile: Double)
val chartMonthData = listOf(
ChartMonth("January", 186.0, 80.0),
ChartMonth("February", 305.0, 200.0),
ChartMonth("March", 237.0, 120.0),
ChartMonth("April", 173.0, 190.0),
ChartMonth("May", 209.0, 130.0),
ChartMonth("June", 264.0, 140.0),
)
val chartDeviceConfig = ChartConfig(
"desktop" to ChartConfigItem("Desktop") { chart1 },
"mobile" to ChartConfigItem("Mobile") { chart2 },
)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartStackedTooltip(
title: String,
description: String,
defaultIndex: Int,
config: ChartConfig = chartDeviceConfig,
tooltip: @Composable ChartTooltipScope.() -> Unit,
) {
ChartTooltipCard(title, description) {
ChartContainer(config, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
chartMonthData,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = title,
) {
XAxis(label = { it.month }, tickMargin = 8.dp, interval = 0, tickFormatter = { it.take(3) })
ChartTooltip(defaultIndex = defaultIndex, cursor = null, content = tooltip)
Bar("desktop", value = { it.desktop }, stackId = "a", radius = ChartRadius(0.dp, 0.dp, 4.dp, 4.dp), maxBarSize = 30.dp)
Bar("mobile", value = { it.mobile }, stackId = "a", radius = ChartRadius(4.dp, 4.dp, 0.dp, 0.dp), maxBarSize = 30.dp)
}
}
}
}Tooltip no label
Tooltip with the category label hidden.
iOS
import * as React from "react"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
const monthData = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 173, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 264, mobile: 140 },
]
const deviceConfig = {
desktop: { label: "Desktop", color: "chart-1" },
mobile: { label: "Mobile", color: "chart-2" },
} satisfies ChartConfig
function StackedTooltipChart({
title,
description,
defaultIndex,
content,
}: {
title: string
description: string
defaultIndex: number
content: React.ReactElement
}) {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>{title}</CardTitle>
<CardDescription>{description}</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={deviceConfig}
accessibilityLabel={title}
className="h-52 w-full"
>
<BarChart
data={monthData}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="month"
tickMargin={8}
interval={0}
tickFormatter={(value: string) => value.slice(0, 3)}
/>
<ChartTooltip
defaultIndex={defaultIndex}
cursor={false}
content={content}
/>
<Bar
dataKey="desktop"
stackId="a"
radius={[0, 0, 4, 4]}
maxBarSize={30}
/>
<Bar
dataKey="mobile"
stackId="a"
radius={[4, 4, 0, 0]}
maxBarSize={30}
/>
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipNoLabelExample() {
return (
<StackedTooltipChart
title="No label"
description="The month is hidden"
defaultIndex={2}
content={<ChartTooltipContent hideLabel />}
/>
)
}import Charts
import EsuissUI
import SwiftUI
struct ChartTooltipNoLabelExample: View {
var body: some View {
ChartStackedTooltip(title: "No label", description: "The month is hidden", defaultIndex: 2) { payload in
ChartTooltipContent(payload, hideLabel: true)
}
}
}
let chartMonthData: [(month: String, desktop: Double, mobile: Double)] = [
("January", 186, 80),
("February", 305, 200),
("March", 237, 120),
("April", 173, 190),
("May", 209, 130),
("June", 264, 140),
]
let chartDevices: ChartConfig = [
"desktop": .init("Desktop", color: Palette.blue500),
"mobile": .init("Mobile", color: Palette.teal500),
]
struct ChartStackedTooltip<Tooltip: View>: View {
let title: String
let description: String
var config = chartDevices
let defaultIndex: Int
@ViewBuilder let tooltip: (ChartTooltipPayload) -> Tooltip
var body: some View {
Card(.filled, size: .sm) {
CardHeader(LocalizedStringKey(title), description: LocalizedStringKey(description))
CardContent {
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(chartMonthData.indices, id: \.self) { index in
let item = chartMonthData[index]
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", 0),
yEnd: .value("Desktop", item.desktop * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(bottomLeadingRadius: 4, bottomTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("desktop"))
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", item.desktop * progress),
yEnd: .value("Mobile", (item.desktop + item.mobile) * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(topLeadingRadius: 4, topTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("mobile"))
ChartAnchorMark(x: .value("Month", item.month), y: .value("Mobile", item.desktop + item.mobile))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: chartMonthData.map(\.month)) { String($0.prefix(3)) } }
.chartYAxis(.hidden)
.chartTooltip(
x: chartMonthData.map(\.month),
defaultIndex: defaultIndex,
cursor: false,
accessibilityLabel: title,
items: { index in
[
ChartTooltipItem("desktop", value: chartMonthData[index].desktop),
ChartTooltipItem("mobile", value: chartMonthData[index].mobile),
]
},
content: tooltip
)
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import com.adamglin.phosphoricons.regular.Desktop
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipScope
@Composable
fun ChartTooltipNoLabelExample() {
ChartStackedTooltip("No label", "The month is hidden", 2) { ChartTooltipContent(hideLabel = true) }
}
class ChartMonth(val month: String, val desktop: Double, val mobile: Double)
val chartMonthData = listOf(
ChartMonth("January", 186.0, 80.0),
ChartMonth("February", 305.0, 200.0),
ChartMonth("March", 237.0, 120.0),
ChartMonth("April", 173.0, 190.0),
ChartMonth("May", 209.0, 130.0),
ChartMonth("June", 264.0, 140.0),
)
val chartDeviceConfig = ChartConfig(
"desktop" to ChartConfigItem("Desktop") { chart1 },
"mobile" to ChartConfigItem("Mobile") { chart2 },
)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartStackedTooltip(
title: String,
description: String,
defaultIndex: Int,
config: ChartConfig = chartDeviceConfig,
tooltip: @Composable ChartTooltipScope.() -> Unit,
) {
ChartTooltipCard(title, description) {
ChartContainer(config, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
chartMonthData,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = title,
) {
XAxis(label = { it.month }, tickMargin = 8.dp, interval = 0, tickFormatter = { it.take(3) })
ChartTooltip(defaultIndex = defaultIndex, cursor = null, content = tooltip)
Bar("desktop", value = { it.desktop }, stackId = "a", radius = ChartRadius(0.dp, 0.dp, 4.dp, 4.dp), maxBarSize = 30.dp)
Bar("mobile", value = { it.mobile }, stackId = "a", radius = ChartRadius(4.dp, 4.dp, 0.dp, 0.dp), maxBarSize = 30.dp)
}
}
}
}Tooltip label formatter
A formatted date as the tooltip label.
iOS
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Area, AreaChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
const MONTHS = [
"January",
"February",
"March",
"April",
"May",
"June",
"July",
"August",
"September",
"October",
"November",
"December",
]
const WEEKDAYS = [
"Sunday",
"Monday",
"Tuesday",
"Wednesday",
"Thursday",
"Friday",
"Saturday",
]
function dayKey(date: Date) {
return [
date.getFullYear(),
String(date.getMonth() + 1).padStart(2, "0"),
String(date.getDate()).padStart(2, "0"),
].join("-")
}
function fromKey(key: string) {
const [year = 0, month = 1, day = 1] = key.split("-").map(Number)
return new Date(year, month - 1, day)
}
const energyConfig = {
energy: { label: "Active energy", color: "red-500" },
} satisfies ChartConfig
const energyValues = [
512, 604, 455, 389, 662, 598, 431, 520, 690, 447, 575, 402, 633, 558,
]
const fortnight = energyValues.map((energy, index) => ({
date: dayKey(new Date(2026, 8, 23 + index)),
energy,
}))
function LabelFormatterDemo() {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>Custom label</CardTitle>
<CardDescription>The date written out in full</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={energyConfig}
accessibilityLabel="Custom label"
className="h-52 w-full"
>
<AreaChart
data={fortnight}
margin={{ top: 70, right: 12, left: 12, bottom: 0 }}
>
<XAxis
dataKey="date"
tickMargin={8}
interval={2}
tickFormatter={(value: string) => String(Number(value.slice(8)))}
/>
<ChartTooltip
defaultIndex={8}
content={
<ChartTooltipContent
indicator="line"
labelFormatter={(_, payload) => {
const date = fromKey(String(payload[0]?.payload.date))
return `${WEEKDAYS[date.getDay()]}, ${MONTHS[date.getMonth()]} ${date.getDate()}`
}}
/>
}
/>
<Area
dataKey="energy"
type="monotone"
strokeWidth={2}
fill={{
stops: [
{ offset: 0, opacity: 0.38 },
{ offset: 1, opacity: 0.02 },
],
}}
/>
</AreaChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipLabelFormatterExample() {
return (
<LabelFormatterDemo />
)
}import Charts
import EsuissUI
import SwiftUI
let chartEnglish = Locale(identifier: "en_US")
let chartEnergyValues: [Double] = [512, 604, 455, 389, 662, 598, 431, 520, 690, 447, 575, 402, 633, 558]
let chartEnergyConfig: ChartConfig = [
"energy": .init("Active energy", color: Palette.red500),
]
func chartDate(year: Int, month: Int, day: Int) -> Date {
let calendar = Foundation.Calendar(identifier: .gregorian)
let first = calendar.date(from: DateComponents(year: year, month: month, day: 1)) ?? .now
return calendar.date(byAdding: .day, value: day - 1, to: first) ?? first
}
struct ChartLabelFormatterDemo: View {
@State private var selection: Int? = 8
var body: some View {
let dates = chartEnergyValues.indices.map { chartDate(year: 2026, month: 9, day: 23 + $0) }
let color = chartEnergyConfig.color("energy")
Card(.filled, size: .sm) {
CardHeader("Custom label", description: "The date written out in full")
CardContent {
ChartContainer(config: chartEnergyConfig) {
ChartAnimator { progress in
Chart {
ForEach(chartEnergyValues.indices, id: \.self) { index in
AreaMark(x: .value("Day", index), y: .value("Energy", chartEnergyValues[index]))
.interpolationMethod(.monotone)
.foregroundStyle(
LinearGradient(colors: [color.opacity(0.38), color.opacity(0.02)], startPoint: .top, endPoint: .bottom)
)
LineMark(x: .value("Day", index), y: .value("Energy", chartEnergyValues[index]))
.interpolationMethod(.monotone)
.lineStyle(StrokeStyle(lineWidth: 2))
.foregroundStyle(color)
}
.chartReveal(progress, x: 0...(chartEnergyValues.count - 1))
if let selection {
PointMark(x: .value("Day", selection), y: .value("Energy", chartEnergyValues[selection]))
.symbolSize(64)
.foregroundStyle(color)
}
}
.chartXScale(domain: 0...(chartEnergyValues.count - 1), range: .plotDimension(padding: 12))
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis {
ChartAxis.x(values: Array(stride(from: 0, to: chartEnergyValues.count, by: 3))) {
"\(Foundation.Calendar(identifier: .gregorian).component(.day, from: dates[$0]))"
}
}
.chartYAxis(.hidden)
.chartTooltip(
x: Array(chartEnergyValues.indices),
selection: $selection,
defaultIndex: 8,
accessibilityLabel: "Custom label",
items: { [ChartTooltipItem("energy", value: chartEnergyValues[$0])] }
) { payload in
ChartTooltipContent(payload, indicator: .line) { payload in
Text(verbatim: dates[payload.index].formatted(
.dateTime.weekday(.wide).month(.wide).day().locale(chartEnglish)
))
}
}
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.runtime.remember
import androidx.compose.ui.Modifier
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.unit.dp
import com.esuiss.ui.components.AreaChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartCurve
import com.esuiss.ui.components.ChartFill
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipIndicator
import com.esuiss.ui.components.Text
import com.esuiss.ui.theme.EsuissTheme
import com.esuiss.ui.theme.Palette
import com.esuiss.ui.theme.Typography
import java.text.SimpleDateFormat
import java.util.Calendar
import java.util.Locale
val chartEnergyConfig = ChartConfig("energy" to ChartConfigItem("Active energy") { Palette.red500 })
val chartEnergyValues = listOf(512, 604, 455, 389, 662, 598, 431, 520, 690, 447, 575, 402, 633, 558)
class ChartEnergy(val date: Calendar, val energy: Double)
fun chartEnergy(values: List<Int>, year: Int, month: Int, day: Int) = values.mapIndexed { index, value ->
ChartEnergy(Calendar.getInstance().apply { clear(); set(year, month, day + index, 12, 0) }, value.toDouble())
}
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartLabelFormatter() {
val colors = EsuissTheme.colors
val data = remember { chartEnergy(chartEnergyValues, 2026, Calendar.SEPTEMBER, 23) }
val longDate = remember { SimpleDateFormat("EEEE, MMMM d", Locale.US) }
ChartTooltipCard("Custom label", "The date written out in full") {
ChartContainer(chartEnergyConfig, Modifier.fillMaxWidth().height(208.dp)) {
AreaChart(
data,
margin = ChartMargin(top = 70.dp, right = 12.dp, bottom = 0.dp, left = 12.dp),
accessibilityLabel = "Custom label",
) {
XAxis(label = { it.date.get(Calendar.DAY_OF_MONTH).toString() }, tickMargin = 8.dp, interval = 2)
ChartTooltip(defaultIndex = 8) {
ChartTooltipContent(
indicator = ChartTooltipIndicator.Line,
labelFormatter = { _, items ->
Text(
longDate.format(data[items.first().index].date.time),
style = Typography.xs.copy(color = colors.foreground, fontWeight = FontWeight.SemiBold),
)
},
)
}
Area(
"energy",
value = { it.energy },
curve = ChartCurve.Monotone,
strokeWidth = 2.dp,
fill = ChartFill.VerticalGradient(topAlpha = 0.38f, bottomAlpha = 0.02f),
)
}
}
}
}Tooltip formatter
Custom value formatting with formatter.
iOS
import { View } from "react-native"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
import { Text } from "@/components/ui/text"
const WEEKDAYS = [
"Sunday",
"Monday",
"Tuesday",
"Wednesday",
"Thursday",
"Friday",
"Saturday",
]
function formatNumber(value: number, digits = 0) {
try {
return new Intl.NumberFormat("en-US", {
minimumFractionDigits: digits,
maximumFractionDigits: digits,
}).format(value)
} catch {
const [whole = "0", fraction] = value.toFixed(digits).split(".")
const grouped = whole.replace(/\B(?=(\d{3})+(?!\d))/g, ",")
return fraction ? `${grouped}.${fraction}` : grouped
}
}
function dayKey(date: Date) {
return [
date.getFullYear(),
String(date.getMonth() + 1).padStart(2, "0"),
String(date.getDate()).padStart(2, "0"),
].join("-")
}
function fromKey(key: string) {
const [year = 0, month = 1, day = 1] = key.split("-").map(Number)
return new Date(year, month - 1, day)
}
const energyConfig = {
energy: { label: "Active energy", color: "red-500" },
} satisfies ChartConfig
const energyValues = [
512, 604, 455, 389, 662, 598, 431, 520, 690, 447, 575, 402, 633, 558,
]
const week = energyValues.slice(-7).map((energy, index) => ({
date: dayKey(new Date(2026, 9, index)),
energy,
}))
function FormatterDemo() {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>With units</CardTitle>
<CardDescription>A unit next to the value</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={energyConfig}
accessibilityLabel="With units"
className="h-52 w-full"
>
<BarChart
data={week}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="date"
tickMargin={8}
interval={0}
tickFormatter={(value: string) =>
(WEEKDAYS[fromKey(value).getDay()] ?? "").slice(0, 3)
}
/>
<ChartTooltip
defaultIndex={3}
cursor={false}
content={
<ChartTooltipContent
hideLabel
formatter={(value) => (
<View className="flex-row items-baseline gap-1.5">
<Text className="text-muted-foreground">
Active energy
</Text>
<Text className="font-semibold text-foreground tabular-nums">
{formatNumber(Number(value))}
</Text>
<Text className="text-xs text-muted-foreground">
kcal
</Text>
</View>
)}
/>
}
/>
<Bar dataKey="energy" radius={4} maxBarSize={26} />
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipFormatterExample() {
return (
<FormatterDemo />
)
}import Charts
import EsuissUI
import SwiftUI
let chartEnglish = Locale(identifier: "en_US")
let chartEnergyValues: [Double] = [512, 604, 455, 389, 662, 598, 431, 520, 690, 447, 575, 402, 633, 558]
let chartEnergyConfig: ChartConfig = [
"energy": .init("Active energy", color: Palette.red500),
]
func chartDate(year: Int, month: Int, day: Int) -> Date {
let calendar = Foundation.Calendar(identifier: .gregorian)
let first = calendar.date(from: DateComponents(year: year, month: month, day: 1)) ?? .now
return calendar.date(byAdding: .day, value: day - 1, to: first) ?? first
}
struct ChartFormatterDemo: View {
let week = Array(chartEnergyValues.suffix(7))
var body: some View {
let labels = week.indices.map {
chartDate(year: 2026, month: 10, day: $0).formatted(.dateTime.weekday(.abbreviated).locale(chartEnglish))
}
Card(.filled, size: .sm) {
CardHeader("With units", description: "A unit next to the value")
CardContent {
ChartContainer(config: chartEnergyConfig) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(week.indices, id: \.self) { index in
BarMark(x: .value("Day", labels[index]), y: .value("Energy", week[index] * progress), width: .fixed(26))
.clipShape(RoundedRectangle(cornerRadius: 4, style: .continuous))
.foregroundStyle(chartEnergyConfig.color("energy"))
ChartAnchorMark(x: .value("Day", labels[index]), y: .value("Energy", week[index]))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: labels) { $0 } }
.chartYAxis(.hidden)
.chartTooltip(
x: labels,
defaultIndex: 3,
cursor: false,
accessibilityLabel: "With units",
items: { [ChartTooltipItem("energy", value: week[$0])] }
) { payload in
ChartTooltipContent(payload, hideLabel: true) { item in
HStack(alignment: .firstTextBaseline, spacing: 6) {
Text("Active energy")
.foregroundStyle(EsuissColor.mutedForeground)
Text(verbatim: item.value.formatted(.number.locale(chartEnglish)))
.font(TextStyle.xs.font(weight: .semibold))
.monospacedDigit()
.foregroundStyle(EsuissColor.foreground)
Text("kcal")
.font(TextStyle.xs.font())
.foregroundStyle(EsuissColor.mutedForeground)
}
}
}
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.runtime.remember
import androidx.compose.ui.Modifier
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.unit.dp
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.Text
import com.esuiss.ui.theme.EsuissTheme
import com.esuiss.ui.theme.Palette
import com.esuiss.ui.theme.Typography
import java.text.NumberFormat
import java.text.SimpleDateFormat
import java.util.Calendar
import java.util.Locale
val chartEnergyConfig = ChartConfig("energy" to ChartConfigItem("Active energy") { Palette.red500 })
val chartEnergyValues = listOf(512, 604, 455, 389, 662, 598, 431, 520, 690, 447, 575, 402, 633, 558)
class ChartEnergy(val date: Calendar, val energy: Double)
fun chartEnergy(values: List<Int>, year: Int, month: Int, day: Int) = values.mapIndexed { index, value ->
ChartEnergy(Calendar.getInstance().apply { clear(); set(year, month, day + index, 12, 0) }, value.toDouble())
}
fun chartNumber(value: Double): String = NumberFormat.getNumberInstance(Locale.US).apply {
minimumFractionDigits = 0
maximumFractionDigits = 0
}.format(value)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartFormatter() {
val colors = EsuissTheme.colors
val data = remember { chartEnergy(chartEnergyValues.takeLast(7), 2026, Calendar.OCTOBER, 0) }
val weekday = remember { SimpleDateFormat("EEE", Locale.US) }
ChartTooltipCard("With units", "A unit next to the value") {
ChartContainer(chartEnergyConfig, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
data,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = "With units",
) {
XAxis(label = { weekday.format(it.date.time) }, tickMargin = 8.dp, interval = 0)
ChartTooltip(defaultIndex = 3, cursor = null) {
ChartTooltipContent(
hideLabel = true,
formatter = { item ->
Row(horizontalArrangement = Arrangement.spacedBy(6.dp)) {
Text(
"Active energy",
Modifier.alignByBaseline(),
style = Typography.xs.copy(color = colors.mutedForeground),
)
Text(
chartNumber(item.value),
Modifier.alignByBaseline(),
style = Typography.xs.copy(color = colors.foreground, fontWeight = FontWeight.SemiBold, fontFeatureSettings = "tnum"),
)
Text("kcal", Modifier.alignByBaseline(), style = Typography.xs.copy(color = colors.mutedForeground))
}
},
)
}
Bar("energy", value = { it.energy }, radius = ChartRadius(4.dp), maxBarSize = 26.dp)
}
}
}
}Tooltip icons
Config icons in place of color indicators.
iOS
import { DesktopIcon, DeviceMobileIcon } from "phosphor-react-native"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, ChartTooltipContent, XAxis } from "@/components/ui/chart"
const monthData = [
{ month: "January", desktop: 186, mobile: 80 },
{ month: "February", desktop: 305, mobile: 200 },
{ month: "March", desktop: 237, mobile: 120 },
{ month: "April", desktop: 173, mobile: 190 },
{ month: "May", desktop: 209, mobile: 130 },
{ month: "June", desktop: 264, mobile: 140 },
]
const iconConfig = {
desktop: { label: "Desktop", color: "chart-1", icon: DesktopIcon },
mobile: { label: "Mobile", color: "chart-2", icon: DeviceMobileIcon },
} satisfies ChartConfig
function IconsDemo() {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>With icons</CardTitle>
<CardDescription>An icon instead of a color</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={iconConfig}
accessibilityLabel="With icons"
className="h-52 w-full"
>
<BarChart
data={monthData}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="month"
tickMargin={8}
interval={0}
tickFormatter={(value: string) => value.slice(0, 3)}
/>
<ChartTooltip
defaultIndex={3}
cursor={false}
content={<ChartTooltipContent />}
/>
<Bar
dataKey="desktop"
stackId="a"
radius={[0, 0, 4, 4]}
maxBarSize={30}
/>
<Bar
dataKey="mobile"
stackId="a"
radius={[4, 4, 0, 0]}
maxBarSize={30}
/>
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipIconsExample() {
return (
<IconsDemo />
)
}import Charts
import EsuissUI
import PhosphorSwift
import SwiftUI
struct ChartTooltipIconsExample: View {
var body: some View {
ChartStackedTooltip(
title: "With icons",
description: "An icon instead of a color",
config: chartDeviceIcons,
defaultIndex: 3
) { payload in
ChartTooltipContent(payload)
}
}
}
let chartMonthData: [(month: String, desktop: Double, mobile: Double)] = [
("January", 186, 80),
("February", 305, 200),
("March", 237, 120),
("April", 173, 190),
("May", 209, 130),
("June", 264, 140),
]
let chartDevices: ChartConfig = [
"desktop": .init("Desktop", color: Palette.blue500),
"mobile": .init("Mobile", color: Palette.teal500),
]
let chartDeviceIcons: ChartConfig = [
"desktop": .init("Desktop", color: Palette.blue500, icon: Ph.desktop.regular),
"mobile": .init("Mobile", color: Palette.teal500, icon: Ph.deviceMobile.regular),
]
struct ChartStackedTooltip<Tooltip: View>: View {
let title: String
let description: String
var config = chartDevices
let defaultIndex: Int
@ViewBuilder let tooltip: (ChartTooltipPayload) -> Tooltip
var body: some View {
Card(.filled, size: .sm) {
CardHeader(LocalizedStringKey(title), description: LocalizedStringKey(description))
CardContent {
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(chartMonthData.indices, id: \.self) { index in
let item = chartMonthData[index]
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", 0),
yEnd: .value("Desktop", item.desktop * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(bottomLeadingRadius: 4, bottomTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("desktop"))
BarMark(
x: .value("Month", item.month),
yStart: .value("Start", item.desktop * progress),
yEnd: .value("Mobile", (item.desktop + item.mobile) * progress),
width: .fixed(30)
)
.clipShape(UnevenRoundedRectangle(topLeadingRadius: 4, topTrailingRadius: 4, style: .continuous))
.foregroundStyle(config.color("mobile"))
ChartAnchorMark(x: .value("Month", item.month), y: .value("Mobile", item.desktop + item.mobile))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: chartMonthData.map(\.month)) { String($0.prefix(3)) } }
.chartYAxis(.hidden)
.chartTooltip(
x: chartMonthData.map(\.month),
defaultIndex: defaultIndex,
cursor: false,
accessibilityLabel: title,
items: { index in
[
ChartTooltipItem("desktop", value: chartMonthData[index].desktop),
ChartTooltipItem("mobile", value: chartMonthData[index].mobile),
]
},
content: tooltip
)
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.unit.dp
import com.adamglin.PhosphorIcons
import com.adamglin.phosphoricons.Regular
import com.adamglin.phosphoricons.regular.Desktop
import com.adamglin.phosphoricons.regular.DeviceMobile
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipScope
@Composable
fun ChartTooltipIconsExample() {
ChartStackedTooltip("With icons", "An icon instead of a color", 3, chartIconConfig) { ChartTooltipContent() }
}
class ChartMonth(val month: String, val desktop: Double, val mobile: Double)
val chartMonthData = listOf(
ChartMonth("January", 186.0, 80.0),
ChartMonth("February", 305.0, 200.0),
ChartMonth("March", 237.0, 120.0),
ChartMonth("April", 173.0, 190.0),
ChartMonth("May", 209.0, 130.0),
ChartMonth("June", 264.0, 140.0),
)
val chartDeviceConfig = ChartConfig(
"desktop" to ChartConfigItem("Desktop") { chart1 },
"mobile" to ChartConfigItem("Mobile") { chart2 },
)
val chartIconConfig = ChartConfig(
"desktop" to ChartConfigItem("Desktop", PhosphorIcons.Regular.Desktop) { chart1 },
"mobile" to ChartConfigItem("Mobile", PhosphorIcons.Regular.DeviceMobile) { chart2 },
)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
@Composable
fun ChartStackedTooltip(
title: String,
description: String,
defaultIndex: Int,
config: ChartConfig = chartDeviceConfig,
tooltip: @Composable ChartTooltipScope.() -> Unit,
) {
ChartTooltipCard(title, description) {
ChartContainer(config, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
chartMonthData,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = title,
) {
XAxis(label = { it.month }, tickMargin = 8.dp, interval = 0, tickFormatter = { it.take(3) })
ChartTooltip(defaultIndex = defaultIndex, cursor = null, content = tooltip)
Bar("desktop", value = { it.desktop }, stackId = "a", radius = ChartRadius(0.dp, 0.dp, 4.dp, 4.dp), maxBarSize = 30.dp)
Bar("mobile", value = { it.mobile }, stackId = "a", radius = ChartRadius(4.dp, 4.dp, 0.dp, 0.dp), maxBarSize = 30.dp)
}
}
}
}Tooltip custom
A fully custom tooltip rendered from a function.
iOS
import { View } from "react-native"
import { Card, CardContent, CardDescription, CardHeader, CardTitle } from "@/components/ui/card"
import { Bar, BarChart, type ChartConfig, ChartContainer, ChartTooltip, XAxis } from "@/components/ui/chart"
import { Text } from "@/components/ui/text"
function formatNumber(value: number, digits = 0) {
try {
return new Intl.NumberFormat("en-US", {
minimumFractionDigits: digits,
maximumFractionDigits: digits,
}).format(value)
} catch {
const [whole = "0", fraction] = value.toFixed(digits).split(".")
const grouped = whole.replace(/\B(?=(\d{3})+(?!\d))/g, ",")
return fraction ? `${grouped}.${fraction}` : grouped
}
}
const stepsData = [
{ day: "Monday", steps: 8412 },
{ day: "Tuesday", steps: 10230 },
{ day: "Wednesday", steps: 6120 },
{ day: "Thursday", steps: 12480 },
{ day: "Friday", steps: 9050 },
{ day: "Saturday", steps: 14320 },
{ day: "Sunday", steps: 4870 },
]
const stepsConfig = {
steps: { label: "Steps", color: "chart-4" },
} satisfies ChartConfig
function CustomDemo() {
return (
<Card variant="filled" size="sm">
<CardHeader>
<CardTitle>Custom content</CardTitle>
<CardDescription>A tooltip built from scratch</CardDescription>
</CardHeader>
<CardContent>
<ChartContainer
config={stepsConfig}
accessibilityLabel="Custom content"
className="h-52 w-full"
>
<BarChart
data={stepsData}
margin={{ top: 70, right: 4, left: 4, bottom: 0 }}
>
<XAxis
dataKey="day"
tickMargin={8}
interval={0}
tickFormatter={(value: string) => value.slice(0, 3)}
/>
<ChartTooltip
defaultIndex={5}
cursor={false}
content={({ active, payload, label }) => {
const entry = payload[0]
if (!active || !entry) return null
return (
<View className="min-w-28 rounded-xl border border-foreground/5 bg-popover px-3 py-2 shadow-lg dark:border-foreground/10">
<Text className="text-xs font-semibold tracking-wide text-muted-foreground uppercase">
Total
</Text>
<View className="flex-row items-baseline gap-1">
<Text className="text-2xl font-semibold tabular-nums">
{formatNumber(Number(entry.value))}
</Text>
<Text className="text-xs font-semibold text-muted-foreground">
steps
</Text>
</View>
<Text className="text-xs text-muted-foreground">
{label}
</Text>
</View>
)
}}
/>
<Bar dataKey="steps" radius={4} maxBarSize={26} />
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipCustomExample() {
return (
<CustomDemo />
)
}import Charts
import EsuissUI
import SwiftUI
let chartEnglish = Locale(identifier: "en_US")
struct ChartCustomDemo: View {
let steps: [(day: String, steps: Double)] = [
("Monday", 8412),
("Tuesday", 10230),
("Wednesday", 6120),
("Thursday", 12480),
("Friday", 9050),
("Saturday", 14320),
("Sunday", 4870),
]
let config: ChartConfig = ["steps": .init("Steps", color: Palette.orange500)]
@Environment(\.colorScheme) private var colorScheme
var body: some View {
let shape = RoundedRectangle(cornerRadius: Radius.xl, style: .continuous)
Card(.filled, size: .sm) {
CardHeader("Custom content", description: "A tooltip built from scratch")
CardContent {
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(steps.indices, id: \.self) { index in
BarMark(x: .value("Day", steps[index].day), y: .value("Steps", steps[index].steps * progress), width: .fixed(26))
.clipShape(RoundedRectangle(cornerRadius: 4, style: .continuous))
.foregroundStyle(config.color("steps"))
ChartAnchorMark(x: .value("Day", steps[index].day), y: .value("Steps", steps[index].steps))
}
}
.chartYScale(range: .plotDimension(endPadding: 70))
.chartXAxis { ChartAxis.x(values: steps.map(\.day)) { String($0.prefix(3)) } }
.chartYAxis(.hidden)
.chartTooltip(
x: steps.map(\.day),
defaultIndex: 5,
cursor: false,
accessibilityLabel: "Custom content",
items: { [ChartTooltipItem("steps", value: steps[$0].steps)] }
) { payload in
VStack(alignment: .leading, spacing: 0) {
Text("TOTAL")
.font(TextStyle.xs.font(weight: .semibold))
.tracking(0.5)
.foregroundStyle(EsuissColor.mutedForeground)
HStack(alignment: .firstTextBaseline, spacing: 4) {
Text(verbatim: payload.total.formatted(.number.locale(chartEnglish)))
.font(TextStyle.xl2.font(weight: .semibold))
.monospacedDigit()
.foregroundStyle(EsuissColor.foreground)
Text("steps")
.font(TextStyle.xs.font(weight: .semibold))
.foregroundStyle(EsuissColor.mutedForeground)
}
Text(verbatim: payload.label)
.font(TextStyle.xs.font())
.foregroundStyle(EsuissColor.mutedForeground)
}
.padding(.horizontal, 12)
.padding(.vertical, 8)
.frame(minWidth: 112, alignment: .leading)
.background(EsuissColor.card, in: shape)
.overlay {
shape.strokeBorder(EsuissColor.foreground.opacity(colorScheme == .dark ? 0.1 : 0.05))
}
.shadow(.lg)
.fixedSize()
}
}
}
.frame(height: 208)
}
}
}
}import androidx.compose.foundation.background
import androidx.compose.foundation.border
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.foundation.layout.widthIn
import androidx.compose.foundation.shape.RoundedCornerShape
import androidx.compose.runtime.Composable
import androidx.compose.ui.Modifier
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.unit.dp
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardHeader
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.Text
import com.esuiss.ui.theme.EsuissTheme
import com.esuiss.ui.theme.Radius
import com.esuiss.ui.theme.Shadows
import com.esuiss.ui.theme.Typography
import com.esuiss.ui.theme.shadow
import java.text.NumberFormat
import java.util.Locale
fun chartNumber(value: Double): String = NumberFormat.getNumberInstance(Locale.US).apply {
minimumFractionDigits = 0
maximumFractionDigits = 0
}.format(value)
@Composable
fun ChartTooltipCard(title: String, description: String, content: @Composable () -> Unit) {
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardHeader(title, description = description)
CardContent { content() }
}
}
class ChartSteps(val day: String, val steps: Double)
val chartStepsData = listOf(
ChartSteps("Monday", 8412.0),
ChartSteps("Tuesday", 10230.0),
ChartSteps("Wednesday", 6120.0),
ChartSteps("Thursday", 12480.0),
ChartSteps("Friday", 9050.0),
ChartSteps("Saturday", 14320.0),
ChartSteps("Sunday", 4870.0),
)
val chartStepsConfig = ChartConfig("steps" to ChartConfigItem("Steps") { chart4 })
@Composable
fun ChartCustom() {
val colors = EsuissTheme.colors
ChartTooltipCard("Custom content", "A tooltip built from scratch") {
ChartContainer(chartStepsConfig, Modifier.fillMaxWidth().height(208.dp)) {
BarChart(
chartStepsData,
margin = ChartMargin(top = 70.dp, right = 4.dp, bottom = 0.dp, left = 4.dp),
accessibilityLabel = "Custom content",
) {
XAxis(label = { it.day }, tickMargin = 8.dp, interval = 0, tickFormatter = { it.take(3) })
ChartTooltip(defaultIndex = 5, cursor = null) {
val entry = items.firstOrNull() ?: return@ChartTooltip
val shape = RoundedCornerShape(Radius.xl)
Column(
Modifier
.widthIn(min = 112.dp)
.shadow(Shadows.lg, shape)
.background(colors.popover, shape)
.border(1.dp, colors.foreground.copy(alpha = if (colors.isDark) 0.1f else 0.05f), shape)
.padding(horizontal = 12.dp, vertical = 8.dp),
) {
Text(
"TOTAL",
style = Typography.xs.copy(color = colors.mutedForeground, fontWeight = FontWeight.SemiBold),
)
Row(horizontalArrangement = Arrangement.spacedBy(4.dp)) {
Text(
chartNumber(entry.value),
Modifier.alignByBaseline(),
style = Typography.xl2.copy(color = colors.foreground, fontWeight = FontWeight.SemiBold, fontFeatureSettings = "tnum"),
)
Text(
"steps",
Modifier.alignByBaseline(),
style = Typography.xs.copy(color = colors.mutedForeground, fontWeight = FontWeight.SemiBold),
)
}
Text(label, style = Typography.xs.copy(color = colors.mutedForeground))
}
}
Bar("steps", value = { it.steps }, radius = ChartRadius(4.dp), maxBarSize = 26.dp)
}
}
}
}Tooltip interactive
Settings that change the tooltip on a stacked bar chart with a legend.
iOS
import * as React from "react"
import { View } from "react-native"
import { Card, CardContent, CardHeader } from "@/components/ui/card"
import { Bar, BarChart, CartesianGrid, type ChartConfig, ChartContainer, ChartLegend, ChartLegendContent, ChartTooltip, ChartTooltipContent, XAxis, YAxis } from "@/components/ui/chart"
import { Label } from "@/components/ui/label"
import { Switch } from "@/components/ui/switch"
import { Text } from "@/components/ui/text"
import { ToggleGroup, ToggleGroupItem } from "@/components/ui/toggle-group"
function formatTotal(value: number) {
try {
return new Intl.NumberFormat(undefined, {
maximumFractionDigits: 1,
}).format(value)
} catch {
return String(Math.round(value * 10) / 10)
}
}
type Indicator = "dot" | "line" | "dashed"
const INDICATORS: Record<Indicator, string> = {
dot: "Dot",
line: "Line",
dashed: "Dashed",
}
const revenueData = [
["Q1 25", 69.1, 9, 26.3],
["Q2 25", 46.8, 8, 26.6],
["Q3 25", 44.6, 8, 27.4],
["Q4 25", 46.2, 8.7, 28.8],
["Q1 26", 71, 9.5, 29.1],
["Q2 26", 49.4, 8.6, 29.4],
["Q3 26", 47.3, 8.9, 30.1],
["Q4 26", 49, 9.3, 31.2],
].map(([quarter, phones, laptops, services]) => ({
quarter: quarter as string,
phones: phones as number,
laptops: laptops as number,
services: services as number,
}))
const revenueConfig = {
phones: { label: "Phones", color: "chart-1" },
laptops: { label: "Laptops", color: "chart-2" },
services: { label: "Services", color: "purple-500" },
} satisfies ChartConfig
function Setting({
id,
label,
checked,
onCheckedChange,
}: {
id: string
label: string
checked: boolean
onCheckedChange: (checked: boolean) => void
}) {
return (
<View className="flex-row items-center gap-2.5">
<Switch
size="sm"
checked={checked}
onCheckedChange={onCheckedChange}
accessibilityLabelledBy={id}
/>
<Label nativeID={id} onPress={() => onCheckedChange(!checked)}>
<Text className="text-sm">{label}</Text>
</Label>
</View>
)
}
function InteractiveDemo() {
const [indicator, setIndicator] = React.useState<Indicator>("dot")
const [showTotal, setShowTotal] = React.useState(true)
const [hideLabel, setHideLabel] = React.useState(false)
const [hideIndicator, setHideIndicator] = React.useState(false)
return (
<Card variant="filled" size="sm">
<CardHeader className="gap-0.5">
<Text className="text-lg font-semibold">Tooltip settings</Text>
<Text className="text-sm text-muted-foreground">
Quarterly revenue · billions · sample data. Change the settings and
touch the bars.
</Text>
</CardHeader>
<CardContent className="gap-5">
<View className="flex-row flex-wrap items-end gap-x-6 gap-y-3">
<View className="gap-1.5">
<Text className="text-xs font-semibold text-muted-foreground">
Indicator
</Text>
<ToggleGroup
spacing={0}
value={[indicator]}
onValueChange={(value) => {
if (value[0]) setIndicator(value[0] as Indicator)
}}
accessibilityLabel="Indicator"
>
{(Object.keys(INDICATORS) as Indicator[]).map((key) => (
<ToggleGroupItem key={key} value={key} size="sm">
<Text>{INDICATORS[key]}</Text>
</ToggleGroupItem>
))}
</ToggleGroup>
</View>
<View className="flex-row flex-wrap gap-x-5 gap-y-2.5 pb-1">
<Setting
id="tooltip-total"
label="Total in title"
checked={showTotal}
onCheckedChange={setShowTotal}
/>
<Setting
id="tooltip-hide-title"
label="Hide title"
checked={hideLabel}
onCheckedChange={setHideLabel}
/>
<Setting
id="tooltip-hide-indicator"
label="Hide indicator"
checked={hideIndicator}
onCheckedChange={setHideIndicator}
/>
</View>
</View>
<ChartContainer
config={revenueConfig}
accessibilityLabel="Quarterly revenue"
className="h-72 w-full"
>
<BarChart
data={revenueData}
margin={{ top: 10, right: 4, left: 12, bottom: 0 }}
>
<CartesianGrid vertical={false} strokeDasharray="2 4" />
<XAxis dataKey="quarter" tickMargin={8} minTickGap={8} />
<YAxis
orientation="right"
tickMargin={6}
width="auto"
tickFormatter={(value: number) => `${value}B`}
/>
<ChartTooltip
defaultIndex={4}
cursor={false}
content={
<ChartTooltipContent
indicator={indicator}
hideLabel={hideLabel}
hideIndicator={hideIndicator}
labelFormatter={
showTotal
? (label, payload) => (
<View className="flex-row justify-between gap-4">
<Text>{label}</Text>
<Text className="tabular-nums">
{formatTotal(
payload.reduce(
(sum, item) => sum + Number(item.value),
0
)
)}
B
</Text>
</View>
)
: undefined
}
/>
}
/>
<ChartLegend content={<ChartLegendContent />} />
<Bar
dataKey="services"
stackId="a"
radius={[0, 0, 4, 4]}
maxBarSize={44}
/>
<Bar dataKey="laptops" stackId="a" maxBarSize={44} />
<Bar
dataKey="phones"
stackId="a"
radius={[4, 4, 0, 0]}
maxBarSize={44}
/>
</BarChart>
</ChartContainer>
</CardContent>
</Card>
)
}
export function ChartTooltipInteractiveExample() {
return (
<InteractiveDemo />
)
}import Charts
import EsuissUI
import SwiftUI
struct ChartInteractiveDemo: View {
let quarters: [(quarter: String, phones: Double, laptops: Double, services: Double)] = [
("Q1 25", 69.1, 9, 26.3),
("Q2 25", 46.8, 8, 26.6),
("Q3 25", 44.6, 8, 27.4),
("Q4 25", 46.2, 8.7, 28.8),
("Q1 26", 71, 9.5, 29.1),
("Q2 26", 49.4, 8.6, 29.4),
("Q3 26", 47.3, 8.9, 30.1),
("Q4 26", 49, 9.3, 31.2),
]
let config: ChartConfig = [
"phones": .init("Phones", color: Palette.blue500),
"laptops": .init("Laptops", color: Palette.teal500),
"services": .init("Services", color: Palette.purple500),
]
let order = ["services", "laptops", "phones"]
@State private var indicator: ChartTooltipIndicator = .dot
@State private var showTotal = true
@State private var hideLabel = false
@State private var hideIndicator = false
func value(_ key: String, _ index: Int) -> Double {
switch key {
case "phones": quarters[index].phones
case "laptops": quarters[index].laptops
default: quarters[index].services
}
}
var indicatorSelection: Binding<ChartTooltipIndicator?> {
Binding(
get: { indicator },
set: { next in
if let next { indicator = next }
}
)
}
var body: some View {
Card(.filled, size: .sm) {
VStack(alignment: .leading, spacing: 2) {
Text("Tooltip settings")
.textStyle(.lg, weight: .semibold)
Text("Quarterly revenue · billions · sample data. Change the settings and touch the bars.")
.textStyle(.sm)
.foregroundStyle(EsuissColor.mutedForeground)
}
.padding(.horizontal, 16)
CardContent {
VStack(alignment: .leading, spacing: 20) {
FlowRow(spacing: 12) {
VStack(alignment: .leading, spacing: 6) {
Text("Indicator")
.textStyle(.xs, weight: .semibold)
.foregroundStyle(EsuissColor.mutedForeground)
ToggleGroup(selection: indicatorSelection, size: .sm, spacing: 0) {
ToggleGroupItem("Dot", value: ChartTooltipIndicator.dot)
ToggleGroupItem("Line", value: ChartTooltipIndicator.line)
ToggleGroupItem("Dashed", value: ChartTooltipIndicator.dashed)
}
.accessibilityLabel(Text("Indicator"))
}
ChartSetting(label: "Total in title", isOn: $showTotal)
ChartSetting(label: "Hide title", isOn: $hideLabel)
ChartSetting(label: "Hide indicator", isOn: $hideIndicator)
}
ChartContainer(config: config) {
ChartAnimator(animationDuration: 400) { progress in
Chart {
ForEach(quarters.indices, id: \.self) { index in
ForEach(order, id: \.self) { key in
let start = order.prefix { $0 != key }.reduce(0) { $0 + value($1, index) }
BarMark(
x: .value("Quarter", quarters[index].quarter),
yStart: .value("Start", start * progress),
yEnd: .value("End", (start + value(key, index)) * progress),
width: .fixed(30)
)
.clipShape(
UnevenRoundedRectangle(
topLeadingRadius: key == "phones" ? 4 : 0,
bottomLeadingRadius: key == "services" ? 4 : 0,
bottomTrailingRadius: key == "services" ? 4 : 0,
topTrailingRadius: key == "phones" ? 4 : 0,
style: .continuous
)
)
.foregroundStyle(config.color(key))
}
ChartAnchorMark(
x: .value("Quarter", quarters[index].quarter),
y: .value("End", order.reduce(0) { $0 + value($1, index) })
)
}
}
.chartXAxis { ChartAxis.x(values: [0, 2, 4, 6].map { quarters[$0].quarter }) { $0 } }
.chartYAxis { ChartAxis.y(count: 5) { "\(Int($0))B" } }
.chartTooltip(
x: quarters.map(\.quarter),
defaultIndex: 4,
cursor: false,
accessibilityLabel: "Quarterly revenue",
items: { index in order.map { ChartTooltipItem($0, value: value($0, index)) } }
) { payload in
if showTotal {
ChartTooltipContent(payload, indicator: indicator, hideLabel: hideLabel, hideIndicator: hideIndicator) {
payload in
HStack(spacing: 16) {
Text(verbatim: payload.label)
Spacer(minLength: 0)
Text("\(payload.total, format: .number.precision(.fractionLength(0...1)))B")
.monospacedDigit()
}
}
} else {
ChartTooltipContent(payload, indicator: indicator, hideLabel: hideLabel, hideIndicator: hideIndicator)
}
}
}
ChartLegendContent()
}
.frame(height: 288)
}
}
}
}
}
struct ChartSetting: View {
let label: LocalizedStringKey
@Binding var isOn: Bool
var body: some View {
Toggle(isOn: $isOn) {
Text(label).textStyle(.sm)
}
.toggleStyle(.switch(size: .sm))
}
}import androidx.compose.foundation.clickable
import androidx.compose.foundation.layout.Arrangement
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.FlowRow
import androidx.compose.foundation.layout.Row
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.height
import androidx.compose.foundation.layout.padding
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.saveable.rememberSaveable
import androidx.compose.runtime.setValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.semantics.contentDescription
import androidx.compose.ui.semantics.semantics
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.unit.dp
import com.esuiss.ui.components.BarChart
import com.esuiss.ui.components.Card
import com.esuiss.ui.components.CardContent
import com.esuiss.ui.components.CardSize
import com.esuiss.ui.components.CardVariant
import com.esuiss.ui.components.ChartAxisOrientation
import com.esuiss.ui.components.ChartConfig
import com.esuiss.ui.components.ChartConfigItem
import com.esuiss.ui.components.ChartContainer
import com.esuiss.ui.components.ChartMargin
import com.esuiss.ui.components.ChartRadius
import com.esuiss.ui.components.ChartTooltipContent
import com.esuiss.ui.components.ChartTooltipIndicator
import com.esuiss.ui.components.Label
import com.esuiss.ui.components.Switch
import com.esuiss.ui.components.SwitchSize
import com.esuiss.ui.components.Text
import com.esuiss.ui.components.ToggleGroup
import com.esuiss.ui.components.ToggleGroupItem
import com.esuiss.ui.components.ToggleSize
import com.esuiss.ui.theme.EsuissTheme
import com.esuiss.ui.theme.Palette
import com.esuiss.ui.theme.Typography
import java.text.NumberFormat
class ChartRevenue(val quarter: String, val phones: Double, val laptops: Double, val services: Double)
val chartRevenueData = listOf(
ChartRevenue("Q1 25", 69.1, 9.0, 26.3),
ChartRevenue("Q2 25", 46.8, 8.0, 26.6),
ChartRevenue("Q3 25", 44.6, 8.0, 27.4),
ChartRevenue("Q4 25", 46.2, 8.7, 28.8),
ChartRevenue("Q1 26", 71.0, 9.5, 29.1),
ChartRevenue("Q2 26", 49.4, 8.6, 29.4),
ChartRevenue("Q3 26", 47.3, 8.9, 30.1),
ChartRevenue("Q4 26", 49.0, 9.3, 31.2),
)
val chartRevenueConfig = ChartConfig(
"phones" to ChartConfigItem("Phones") { chart1 },
"laptops" to ChartConfigItem("Laptops") { chart2 },
"services" to ChartConfigItem("Services") { Palette.purple500 },
)
fun chartTotal(value: Double): String = NumberFormat.getNumberInstance().apply {
maximumFractionDigits = 1
}.format(value)
fun chartTick(value: Double): String =
if (value == Math.floor(value)) value.toLong().toString() else value.toString()
@Composable
fun ChartSetting(label: String, checked: Boolean, onCheckedChange: (Boolean) -> Unit) {
Row(horizontalArrangement = Arrangement.spacedBy(10.dp), verticalAlignment = Alignment.CenterVertically) {
Switch(checked, onCheckedChange, Modifier.semantics { contentDescription = label }, size = SwitchSize.Sm)
Label(Modifier.clickable(interactionSource = null, indication = null) { onCheckedChange(!checked) }) {
Text(label, style = Typography.sm)
}
}
}
@Composable
fun ChartInteractive() {
val colors = EsuissTheme.colors
var indicator by rememberSaveable { mutableStateOf("dot") }
var showTotal by rememberSaveable { mutableStateOf(true) }
var hideLabel by rememberSaveable { mutableStateOf(false) }
var hideIndicator by rememberSaveable { mutableStateOf(false) }
Card(variant = CardVariant.Filled, size = CardSize.Sm) {
CardContent {
Column(verticalArrangement = Arrangement.spacedBy(2.dp)) {
Text("Tooltip settings", style = Typography.lg.copy(fontWeight = FontWeight.SemiBold))
Text(
"Quarterly revenue · billions · sample data. Change the settings and touch the bars.",
style = Typography.sm.copy(color = colors.mutedForeground),
)
}
}
CardContent {
Column(verticalArrangement = Arrangement.spacedBy(20.dp)) {
FlowRow(
horizontalArrangement = Arrangement.spacedBy(24.dp),
verticalArrangement = Arrangement.spacedBy(12.dp),
itemVerticalAlignment = Alignment.Bottom,
) {
Column(verticalArrangement = Arrangement.spacedBy(6.dp)) {
Text(
"Indicator",
style = Typography.xs.copy(color = colors.mutedForeground, fontWeight = FontWeight.SemiBold),
)
ToggleGroup(
value = indicator,
onValueChange = { if (it != null) indicator = it },
modifier = Modifier.semantics { contentDescription = "Indicator" },
size = ToggleSize.Sm,
spacing = 0,
) {
ToggleGroupItem("Dot", "dot")
ToggleGroupItem("Line", "line")
ToggleGroupItem("Dashed", "dashed")
}
}
FlowRow(
modifier = Modifier.padding(bottom = 4.dp),
horizontalArrangement = Arrangement.spacedBy(20.dp),
verticalArrangement = Arrangement.spacedBy(10.dp),
) {
ChartSetting("Total in title", showTotal) { showTotal = it }
ChartSetting("Hide title", hideLabel) { hideLabel = it }
ChartSetting("Hide indicator", hideIndicator) { hideIndicator = it }
}
}
ChartContainer(chartRevenueConfig, Modifier.fillMaxWidth().height(288.dp)) {
BarChart(
chartRevenueData,
margin = ChartMargin(top = 10.dp, right = 4.dp, bottom = 0.dp, left = 12.dp),
accessibilityLabel = "Quarterly revenue",
) {
CartesianGrid(strokeDasharray = listOf(2f, 4f))
XAxis(label = { it.quarter }, tickMargin = 8.dp, minTickGap = 8.dp)
YAxis(orientation = ChartAxisOrientation.Right, tickMargin = 6.dp, tickFormatter = { "${chartTick(it)}B" })
ChartTooltip(defaultIndex = 4, cursor = null) {
ChartTooltipContent(
indicator = when (indicator) {
"line" -> ChartTooltipIndicator.Line
"dashed" -> ChartTooltipIndicator.Dashed
else -> ChartTooltipIndicator.Dot
},
hideLabel = hideLabel,
hideIndicator = hideIndicator,
labelFormatter = if (showTotal) {
{ label, items ->
Row(Modifier.fillMaxWidth(), horizontalArrangement = Arrangement.spacedBy(16.dp)) {
Text(
label,
Modifier.weight(1f),
style = Typography.xs.copy(color = colors.foreground, fontWeight = FontWeight.SemiBold),
)
Text(
"${chartTotal(items.sumOf { it.value })}B",
style = Typography.xs.copy(color = colors.foreground, fontWeight = FontWeight.SemiBold, fontFeatureSettings = "tnum"),
)
}
}
} else {
null
},
)
}
ChartLegend()
Bar("services", value = { it.services }, stackId = "a", radius = ChartRadius(0.dp, 0.dp, 4.dp, 4.dp), maxBarSize = 44.dp)
Bar("laptops", value = { it.laptops }, stackId = "a", maxBarSize = 44.dp)
Bar("phones", value = { it.phones }, stackId = "a", radius = ChartRadius(4.dp, 4.dp, 0.dp, 0.dp), maxBarSize = 44.dp)
}
}
}
}
}
}API Reference
ChartPalette
Resolves token colors to concrete values.
| Prop | Type | Default | Description |
|---|---|---|---|
colors | readonly ChartColor[] | Required | Token colors to resolve. |
children | (palette: Partial<Record<ChartColor, string>>) => React.ReactNode | Required | Function that receives the resolved colors. |
ChartContainer
Sizes the chart and provides the config.
| Prop | Type | Default | Description |
|---|---|---|---|
config | ChartConfig | Required | Series labels, token colors and icons keyed by data key. |
Also accepts the props of ChartPrimitive.ContainerProps.
LineChart
Cartesian chart for Line series.
Also accepts the props of CartesianChartProps.
AreaChart
Cartesian chart for Area series, with optional stacking.
Also accepts the props of CartesianChartProps, ChartPrimitive.RootProps.
BarChart
Cartesian chart for Bar series, vertical or horizontal.
Also accepts the props of CartesianChartProps, ChartPrimitive.RootProps.
ComposedChart
Cartesian chart that mixes lines, areas and bars.
Also accepts the props of CartesianChartProps.
PieChart
Pie and donut charts built from Pie.
Also accepts the props of ChartRootProps, ChartPrimitive.RootProps.
RadialBarChart
Circular bars built from RadialBar.
Also accepts the props of ChartRootProps, ChartPrimitive.RootProps.
RadarChart
Polar chart built from Radar and PolarGrid.
Also accepts the props of ChartRootProps, ChartPrimitive.RootProps.
ChartTooltipContent
Default tooltip card.
| Prop | Type | Default | Description |
|---|---|---|---|
className | string | - | Classes for the tooltip card. |
indicator | "line" | "dot" | "dashed" | "dot" | dot, line or dashed. Defaults to dot. |
hideLabel | boolean | false | Hides the category label. |
hideIndicator | boolean | false | Hides the color indicator. |
nameKey | string | - | Data key used to look up series names in the config. |
labelFormatter | ( label: React.ReactNode, payload: ChartPrimitive.TooltipItem[] ) => React.ReactNode | - | Formats the tooltip label. |
formatter | ( value: ChartPrimitive.ChartValue, name: string, item: ChartPrimitive.TooltipItem, index: number, payload: ChartPrimitive.ChartDatum ) => React.ReactNode | - | Renders each row yourself. |
ChartLegendContent
Default legend with swatches or icons.
| Prop | Type | Default | Description |
|---|---|---|---|
className | string | - | Classes for the legend row. |
nameKey | string | - | Data key used to look up legend names in the config. |
Accessibility
- The chart is one accessible element labelled with its series names and data range; pass
accessibilityLabeltoChartContainerto override the names. - With a tooltip it has the
adjustablerole: VoiceOver and TalkBack swipe actions step through data points, and the selected values are announced as the value text. - Without a tooltip it has the
imagerole. - With Reduce Motion on, charts skip the enter and update animations and draw in their final state.
Notes
- Series colors accept
chart-1tochart-5, theme colors such asprimary,destructiveandforeground, and palette colors such asgreen-500andred-500; grid and cursor lines useborder. - Value labels from
LabelListand pielabelappear once a series finishes animating. - Light and dark follow the system appearance.
